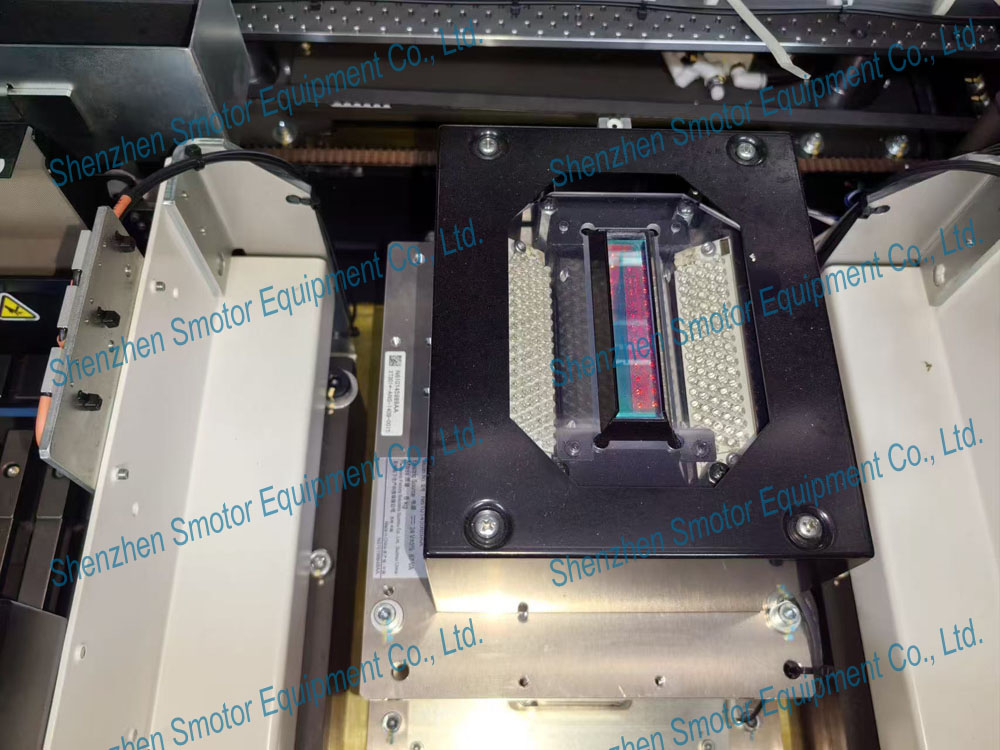

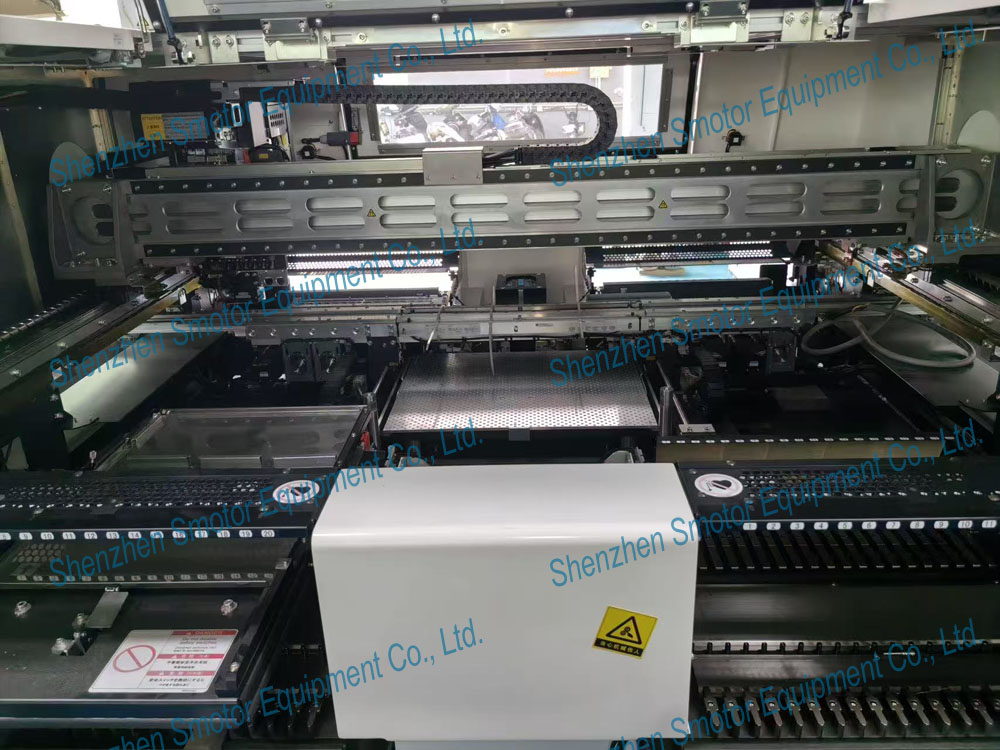

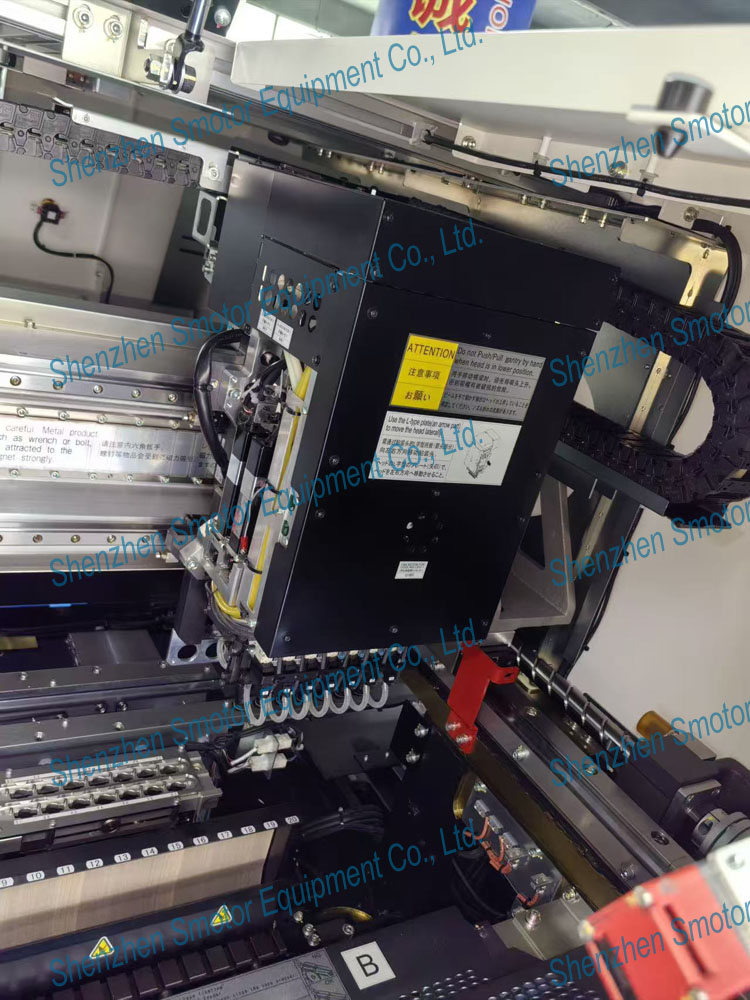

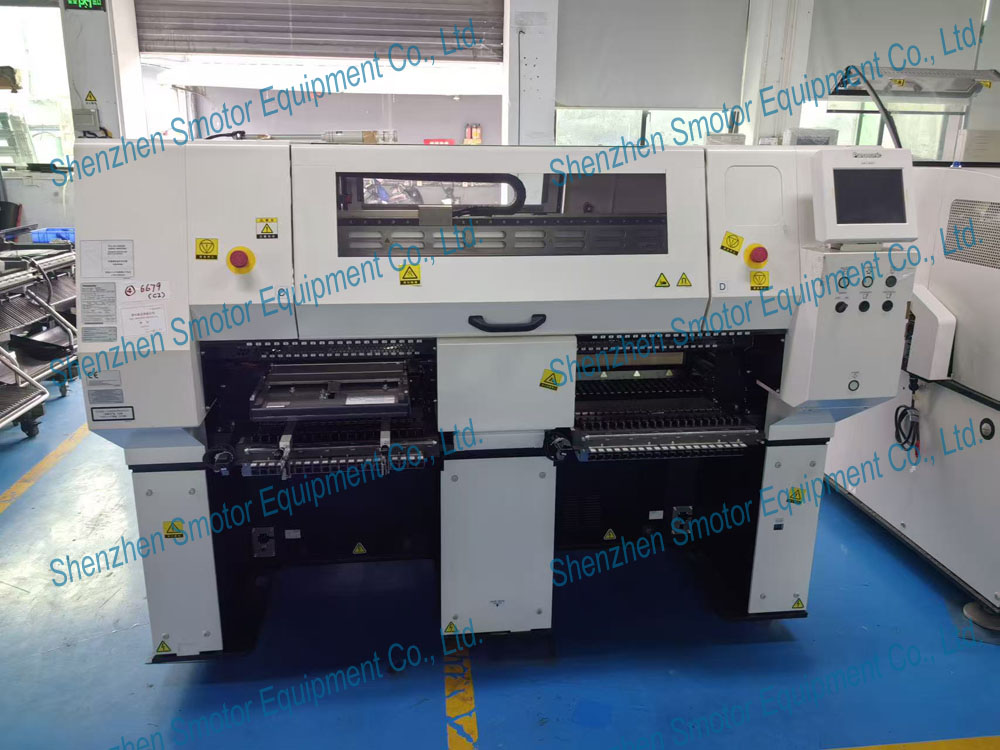

| Model Name | AM100 | ||
| Model | NM-EJM4D | ||
| Substrate size(mm) | L50xW50~L510xW460 | ||
| Mounting speed |
35 800 cph (0.1006 s/chip) 12 200 cph(0.295s/QFP □12 mm or less) |
||
| Mounting accuracy (Cpk≥1) | ± 40 μm/chip | ||
| ± 50 μm/QFP □12 mm or less | |||
| ± 30 μm/QFP □12 mm ~□32 mm | |||
| Component supply | Taping | Tape width: 4~56/72/88/ 104 mm | |
|
Tape feeder specification: Max.160 varieties Tray feeder specification: Max. 120 varieties |
(Taping width: 4/8 mm Tape (small reel) |
||
| Rod |
Tape feeder specification: Max. 40 varieties Tray feeder specification: Max. 30 varieties |
(when used with a single rod feeder) |
|
| Pallet |
Tray feeder specification: Max. 20 types*1 Specification of Hand Tray: Max. 20 varieties*2 (Option for Fixed Supply Section) |
||
| Component size(mm) |
0402 chip *3~L120xW90 or L150xW25(T=28 *4) |
||
| Substrate replacement time | Approx. 4.0s (when there are no components mounted on the back side) | ||
| Power supply |
Three phase AC 200/220V±10V, AC380/400/420/480V±20V 2.0 kVA |
||
| Air Pressure Source |
Min.0.5 MPa- Max.0.8 MPa, 200 L/min (A.N.R.) |
||
| Device Size(mm) | W1970xD2019*5xH1500*6 | ||
| Weight | 2 650 kg *7 | ||
