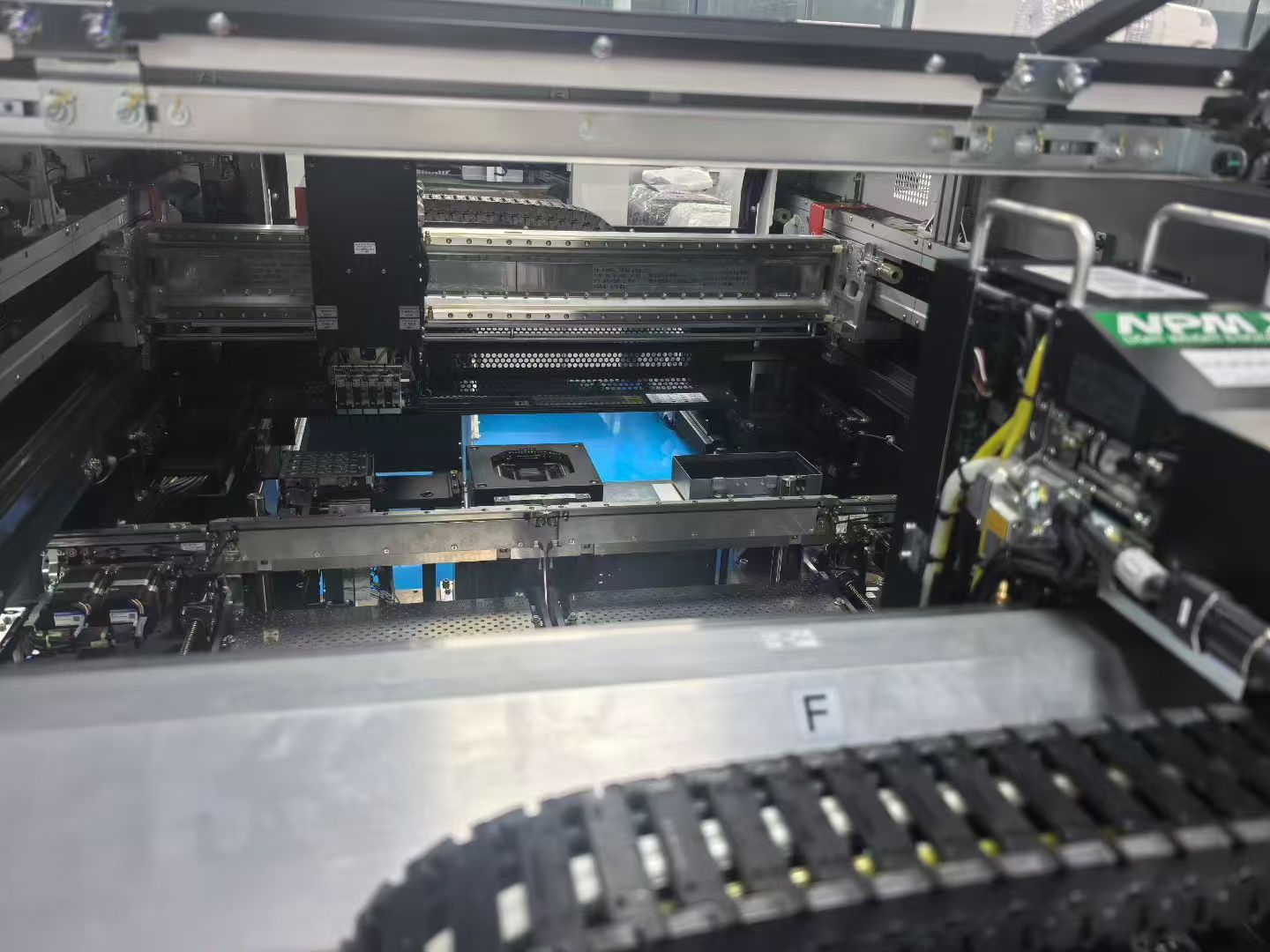

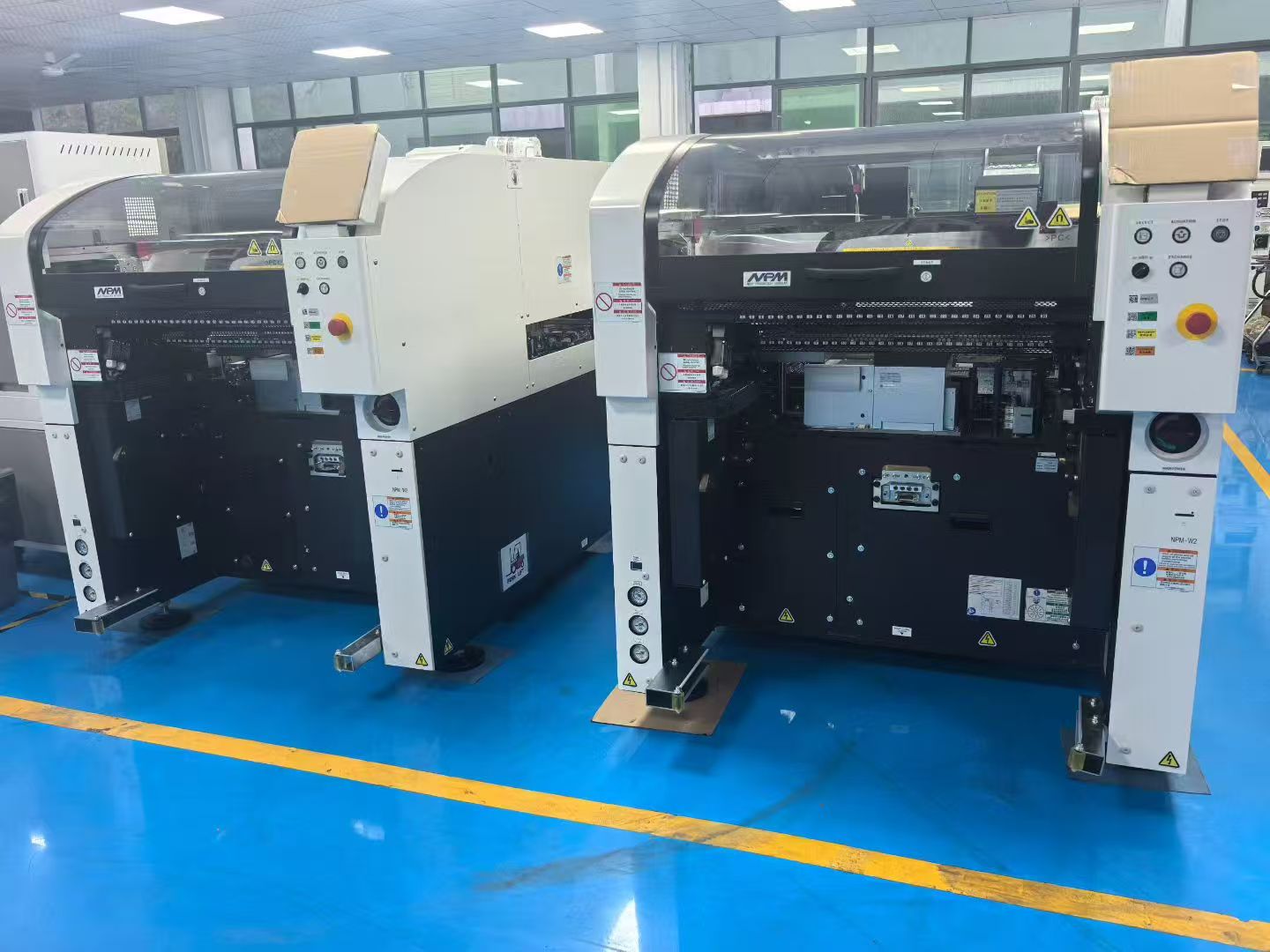

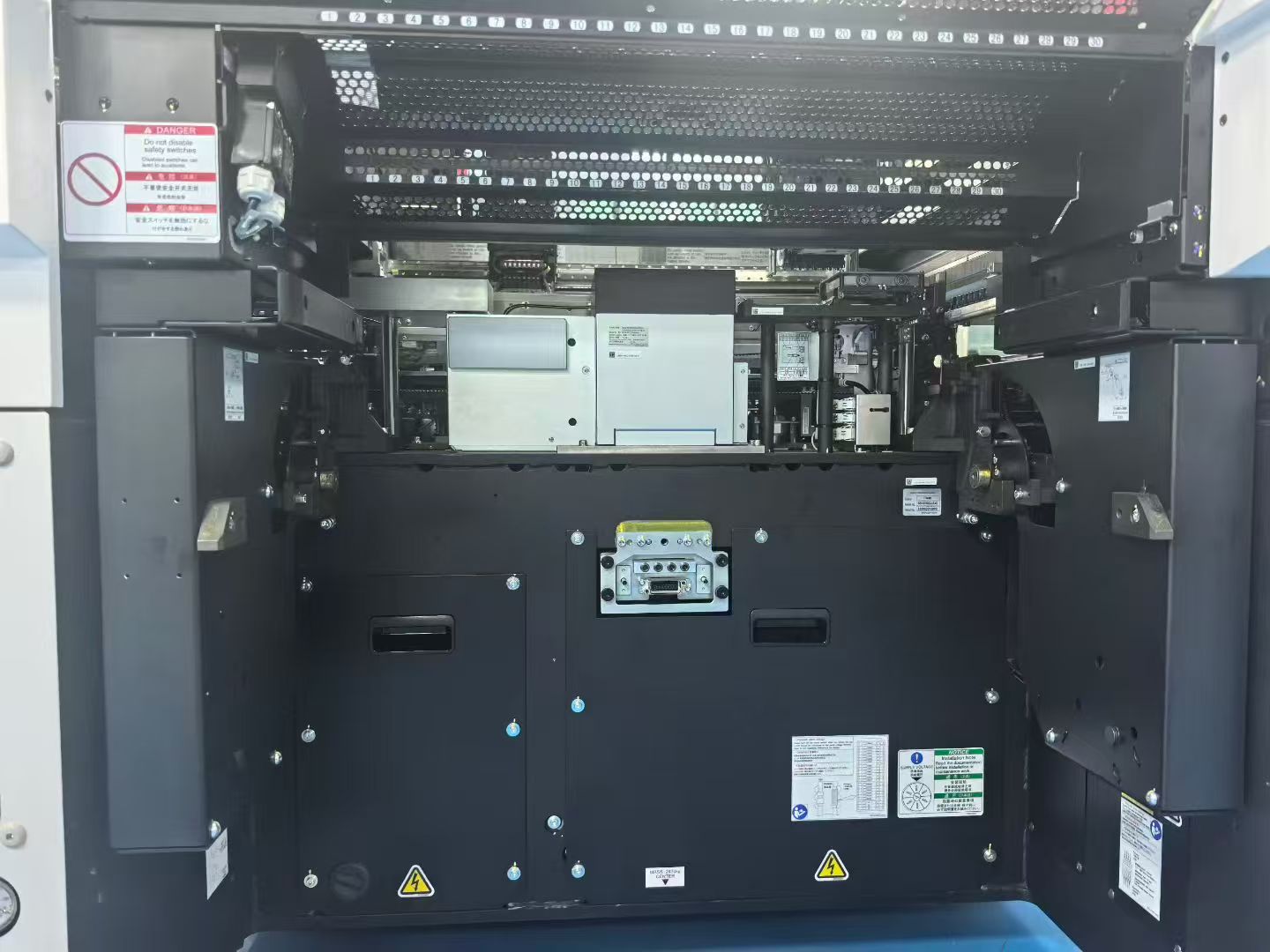

Panasonic NPM-W2 NM-EJM7D Pick And Place Machine

Brand： Panasonic
Model ID: NPM-W2
Model No.: NM-EJM7D
Vintage:2025...

Products Inquiry

Title * :

Email * :

Name :

Tel :

Message :

Model ID			NPM-W2
Rear head			Light weight 16-nozzle head	12-nozzle head	Light weight 8-nozzle head	3-nozzle head V2	Dispensing head	No head
Front head
Light weight 16-nozzle head			NM-EJM7D				NM-EJM7D-MD	NM-EJM7D
12-nozzle head
Light weight 8-nozzle head
3-nozzle head V2
Dispensing head			NM-EJM7D-MD				–	NM-EJM7D-D
Inspection head			NM-EJM7D-MA					NM-EJM7D-A
No head			NM-EJM7D				NM-EJM7D-D	–

PCB dimensions（mm）	Single lane mode*1	Solid assembly	L 50 × W 50 ～ L 750 × W 550
		2 positions are installed	L 50 × W 50 ～ L 350 × W 550
	Dual lane mode*1	Two-track transmission	L 50 × W 50 ～ L 750 × W 260
		Dual track transfer (2 locations)	L 50 × W 50 ～ L 350 × W 260
		Monorail transmission	L 50 × W 50 ～ L 750 × W 510
		Monorail transfer (2 locations)	L 50 × W 50 ～ L 350 × W 510
Electric source			3-phase AC 200、220、380、400、420、480V 2.8 kVA
Pneumatic source*2			0.5 MPa、200 L /min（A.N.R.）
Dimensions（mm）*2（mm）			W 1 280 mm3 × D 2 332 mm4 × H 1 444 mm*5
Mass			2 470 kg（Only for main body:This differs depending on the option configuration。）
