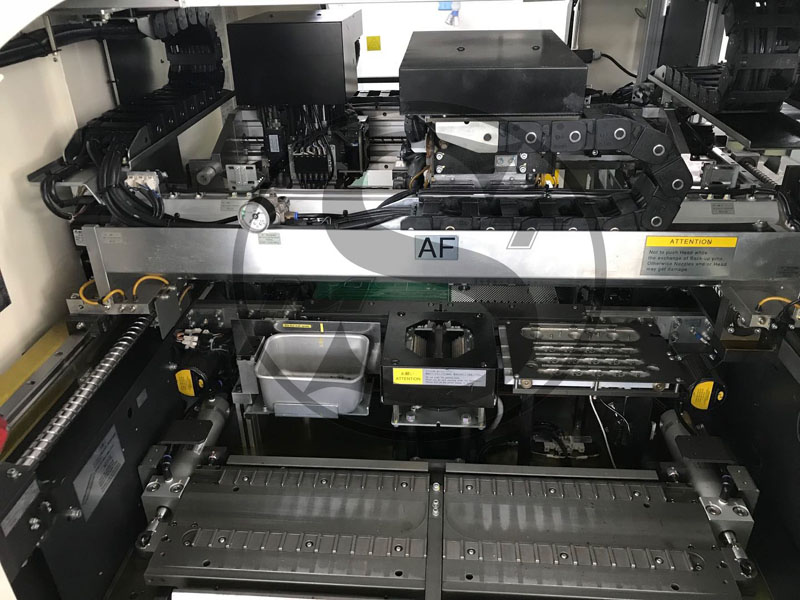

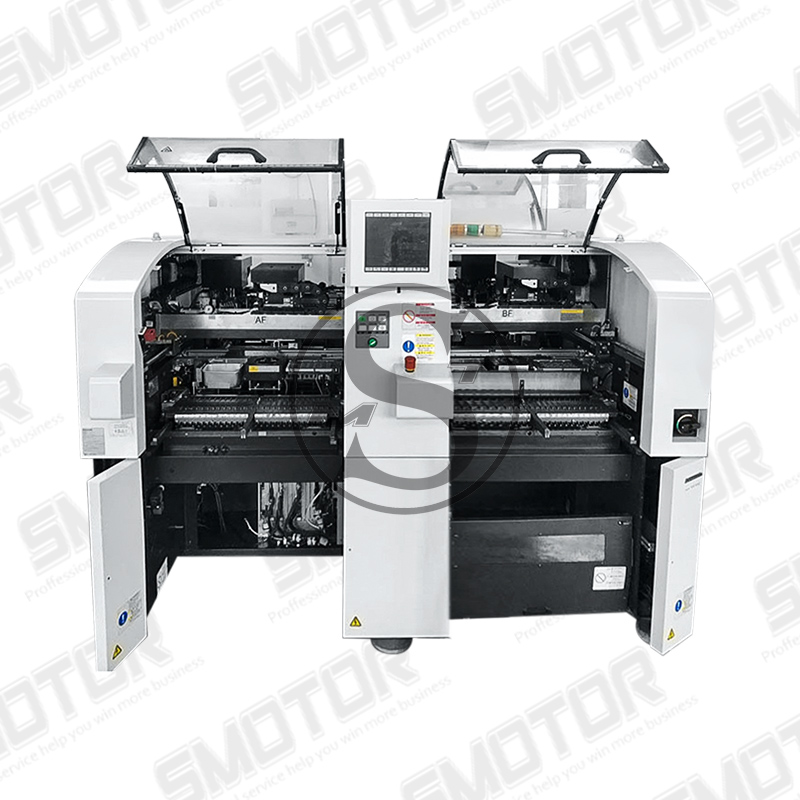

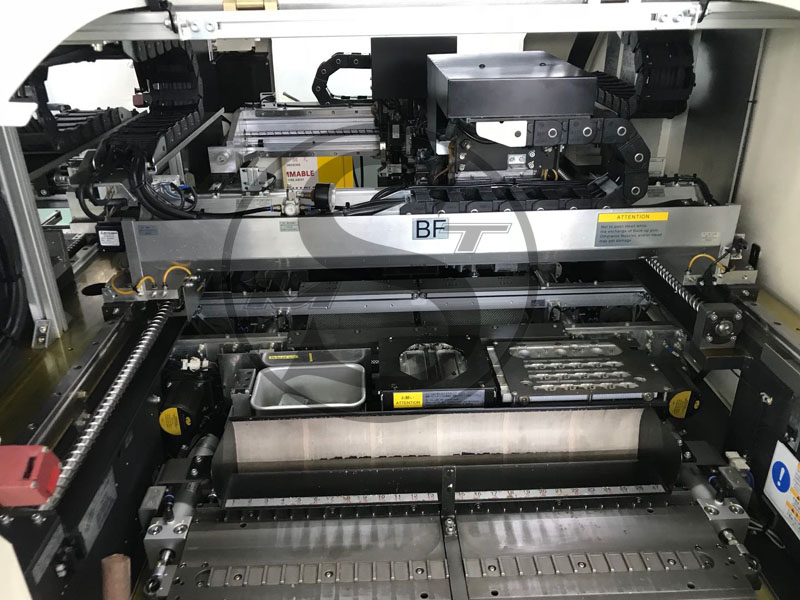

 ModelItem |
CM201-D |
CM201-DH CM201-DS |
CM202-D |
CM202-DH CM202-DK CM202-DS |
CM201-DU |
CM202-DU |
CM202-DHU |
| Mount angle | 0 ° to 359 ° (avavilable for setting per 0.01 ° ) | ||||||
| Mount range | Turn to “1-3-2 Mouting Area” in the Operating Manual | ||||||
|
Board flow direction |
Turn to “1-3-3 Board Flowing Direction” in the Operating Manual | ||||||
| Control system | Micro computer | ||||||
| Outer memory | Data are saved to PT. (1MB is necessary per a piece of data, depending on HD volume of PT) 3.5-inch floppy disk 1 type / piece | ||||||
| Program data *1 | Number of points Max. 7000 points | ||||||
|

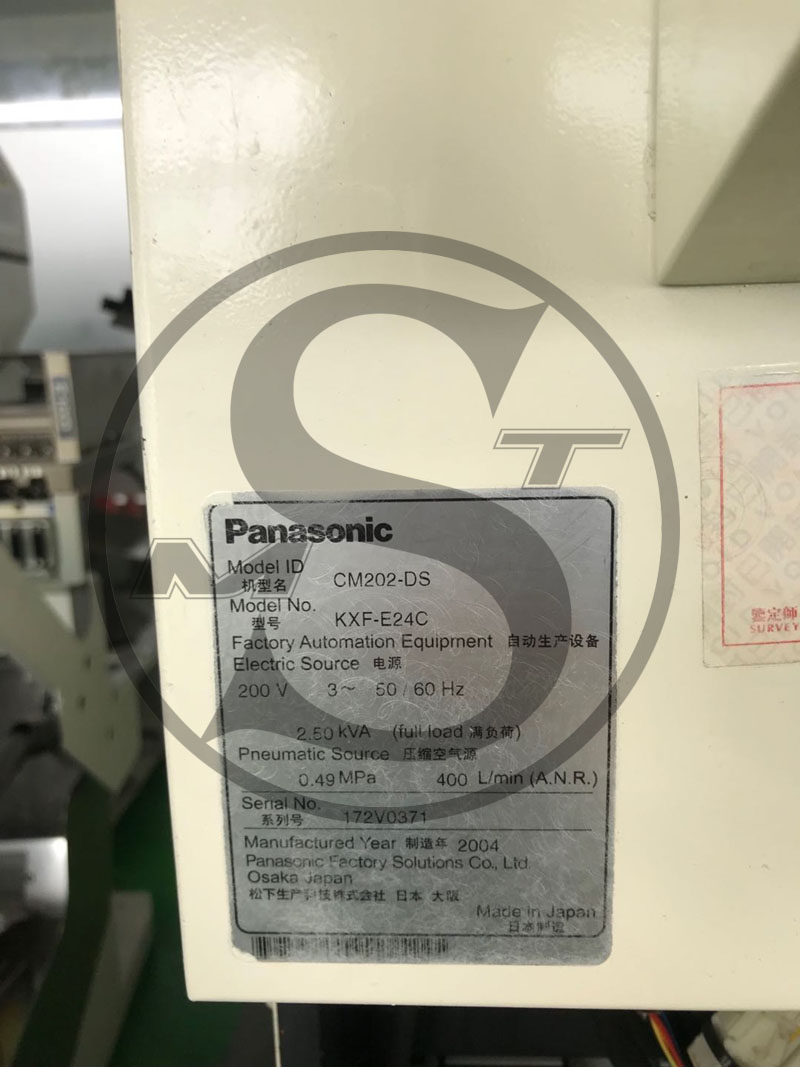

Power supply |
Normal voltage : 3 phases AC 200 V ± 10 V Frequency 50/60 Hz or 3 phases AC 220 V ± 1 1 V Frequency 60 Hz |
Normal voltage : 3 phases AC 400 V ± 10V Frequency 50/60 Hz |
|||||
| Power | 1.5kVA | 2.5kVA | 1.5kVA | 2.5kVA | |||
|
Supply air pressure |
0.49 MPa to 0.78 MPa (0.49 MPa to 0.54 MPa for the MR Unit afterward) | ||||||
|
Supply air volume |
150 l/min (A.N.R.) | 300 l/min (A.N.R.) | 150 l/min (A.N.R.) | 300 l/min (A.N.R.) | |||
|
Outer size |
A | B | C | D | A | C | D |
|
A : 1400 mm (W) × 1930 mm (D) × 2000 mm (H) (including the status indicator) B : 1400 mm (W) × 1950 mm (D) × 2000 mm (H) (including the status indicator) C : 2200 mm (W) × 1930 mm (D) × 2000 mm (H) (including the status indicator) D : 2350 mm (W) × 1950 mm (D) × 2000 mm (H) (including the status indicator) |
|||||||
| Mass *2 | 1300 kg | 1500 kg | 2400 kg | 2800 kg | 1300 kg | 2400 kg | 2800 kg |
| Environmental condition |
Temperature: 10 °C to 35 °C Humidity: 25 % to 60 % (under no moisture condensation) |
||||||
| Noise | 76 dB | ||||||
