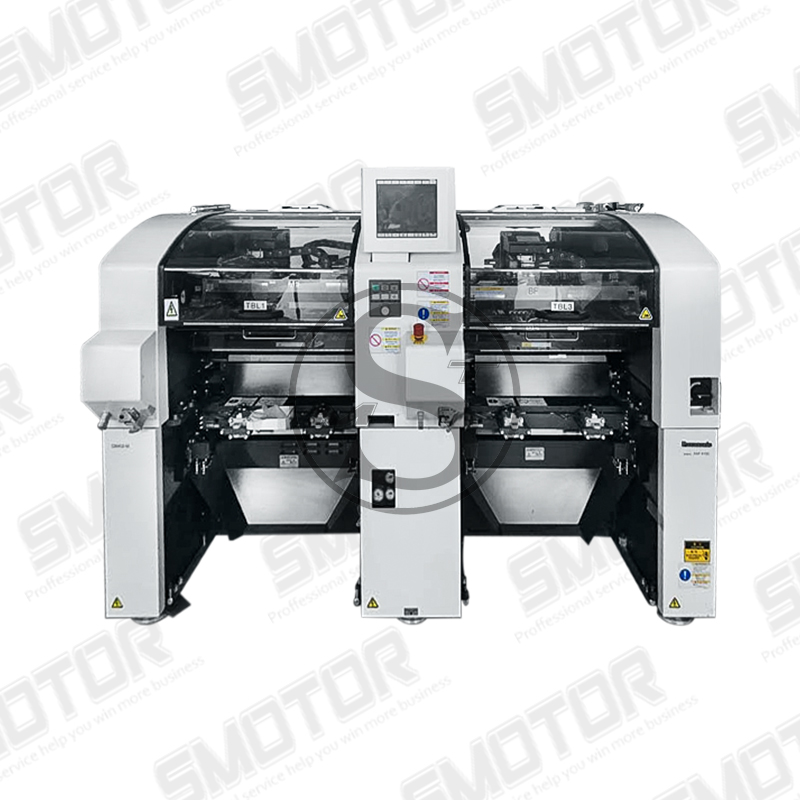

| Item | Specifications | |
|
Mounting angle |
0° to 359° (It can be set in increments of 0.01°.) |
|
|
Mounting range |
Refer to the Reference Manual. |
|
|
Board flow direction |
Refer to the Reference Manual. |
|
|
Control system |
Microcomputer system |
|
|
External memory |
Data is saved in PT. (Approximately 1 MB is required for saving a piece of data, depending on the hard disk space of PT.) One type per 3.5-inch floppy disk |
|
|
Program data ∗1 |
Point count: Max. 10000 points |
|
|
Power source |
Machine body |
Normal service source: Three-phase 200±10 VAC or 400±20 VAC Frequency: 50/60 Hz |
|
Peak current value during operation |
CM401-M: 18 A CM401-L: 15 A CM402-M: 27 A CM402-L: 20 A Rated voltage 200 VAC: Measured based on our aging data Take this into account when choosing the primary power supply AVR (Stabilized power supply), etc. (The peak current value varies depending on the operation data.) |
|
|
Power supply for HUB ∗ 3 |
Single-phase 100 VAC to 240 VAC, Frequency: 50/60 Hz |
|
|
Rated capacity |
Machine body |
CM401-M: 1.7 kVA CM401-L: 1.6 kVA CM402-M: 3.5kVA CM402-L: 2.5 kVA |
|
Power supply for HUB ∗ 3 |
140 VA |
|
|
Supply air pressure |
0.49 MPa to 0.78 MPa (Working air pressure: 0.49 MPa to 0.54 MPa) |
|
|
Supply air volume |
150 L/min (A.N.R) |
|
|
Outside dimension |
CM401-M: 1260 mm (W) × 2460 mm (D) × 1430 mm (H) CM401-L: 1260 mm (W) × 2690 mm (D) × 1430 mm (H) CM402-M: 2350 mm (W) × 2460 mm (D) × 1430 mm (H) CM402-L: 2350 mm (W) × 2690 mm (D) × 1430 mm (H) ∗ Three-color signal tower and color touch panels not included |
|
|
Mass ∗2 |
CM401-M: 1500 kg (Standard configuration, excluding a collectively changing truck) CM401-L: 1665 kg (Standard configuration, excluding a collectively changing truck) CM402-M: 2700 kg (Standard configuration, excluding a collectively changing truck) CM402-L: 3000 kg (Standard configuration, excluding a collectively changing truck) ∗ (One) Collectively changing truck: 140 kg |
|
|
Environmental condition |
Temperature: 10°C to 35°C Humidity: 25% RH to 75% RH (No condensation) |
|
|
Transportation and storage condition |
Temperature: −20°C to 60°C Humidity: 75% RH or less (No condensation) |
|
|
Altitude |
1000 m or less, above sea level |
|
|
Noise |
< 70 dB (A) |
|
