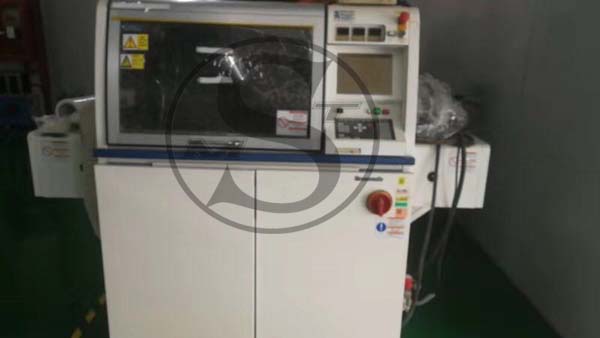

Used Panasonic HDF-XL NM-DC15 Dispenser Machine for sale

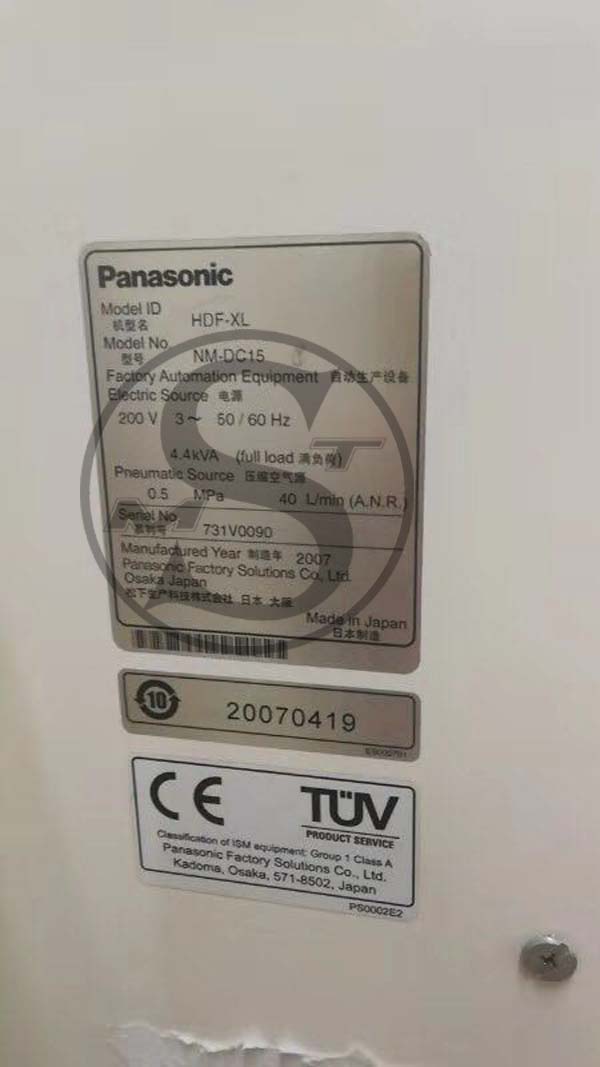

Brand: Panasonic
Model ID: HDF-XL
Model No.: NM-DC15
Condition:2007 year Used
Warranty Time: 1 month...
Products Inquiry

Description




HDF High Speed Adhesive Dispenser
Model No.: NM-DC10  NM-DC15

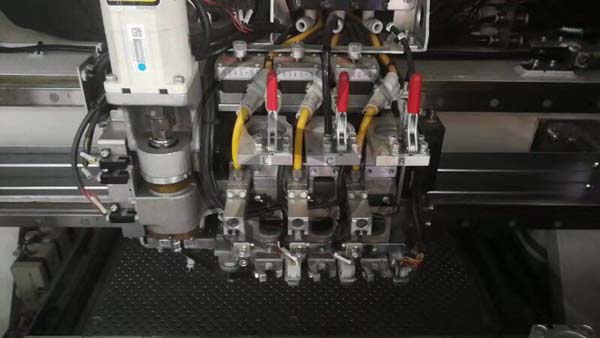

A high-speed adhesive application machine with a screw-type application head ensures stable application at 0.07sec/shot regardless of temperature，viscosity or the amount or remaining adhesive
Model No. PCB Board Size（mm） Max Speed Application nozzles PC Board Exchange time Application Direction Power Supply Air Supply Outer dimensions（mm） ApproxMass（（kg）
Width Depth Height
NM-DC10 M 50 50 to 320 250 Screw：0.07 sec/shot 3 types(VS,S,L) Approx 2.4sec. -90 to 89(in 1 increments) 3-phase 200V 2kVA 0.5MPa 40L/min 1，205 765 1,500 900
NM-DC15 XL 50 50 to 510 460 Approx 2.9sec. 1,205 1,082 1,500 1,245
