| X-Ray SMD Counter Parameter | ||

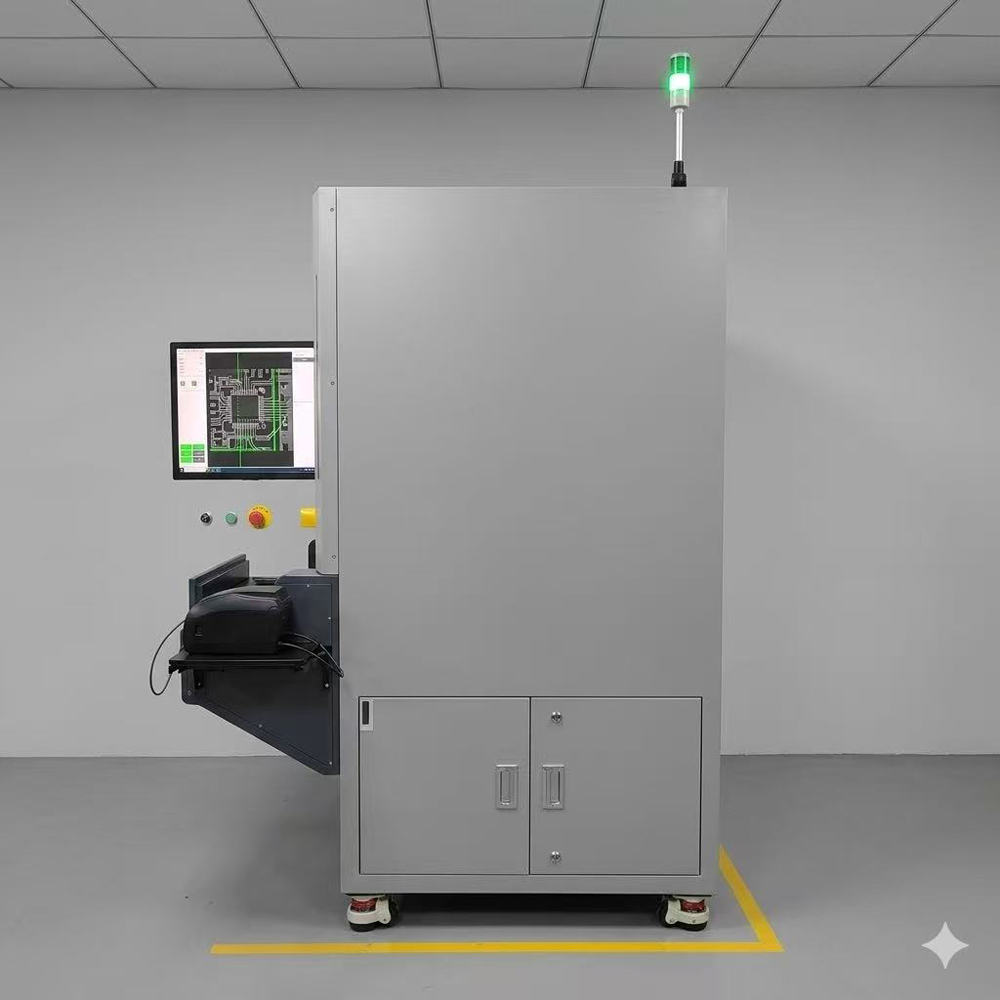

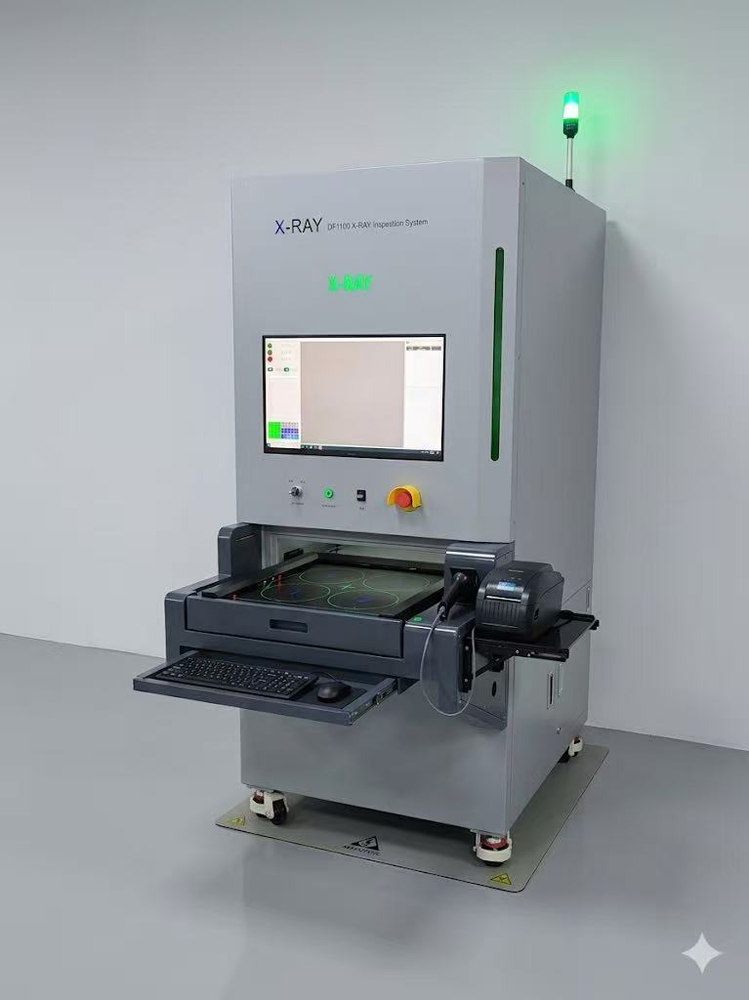

| Model No. | DF-1100 （ X-Ray Intelligent SMD Counter） | |
| Overall machine | Size | W900mm*L1300*H1880mm(Not including indicator light) |
| Weight | 820Kg | |
| Power/Voltage | AC110-220V 50/60Hz Max 1000W | |
| Industrial PC | CPU i5 8500 /Memory16G/SSD128G/Disk 1T / RTX1030 4G DGPU /24寸Samsung HD Display | |
| OS. | Windows 10 64Bit Proffesional Version | |
| X-Ray Tube | Type of Tube | Closed Type |
| Optical tube output voltage | 30~80 KV | |
| Phototube emission current | 0.3~0.6mA （RP.48W) | |
| Focus Size | 33 µm | |
| Flat panel detector | Imager | High-resolution digital flat panel detector（FPD) |
| Size of Image | 430mm*430mm | |
| Pixel Size | 139 µm | |
| Pixel Matrix | 3072*3072 pixel | |
| Spatial Resolution | 3.6LP/mm | |
| Handheld Scanner | Scanner | Zebra DS2208 Handheld Scanner |
| Speed of Scan | 100 times/S | |
| Formula of Scan | 650nm Laser Diode | |
| Accuracy Rate of Scan | Collect data from various labels and all common one-dimensional and two-dimensional barcodes on the display screen | |
| Inspection Items and Dimensions | Detection Device Type Range | Components 01005 or Above SMD，The database is dynamically and continuously updated, covering over 99.5% of materials on the market. |
| Reel Inspection size range | 7-15 Inch /Including smaller SMD | |
| Reel Detection height range | 1-90 mm | |
| Reel Max Weight | ≤10 Kg | |
| Caculating System | Counting Time | 1 or 4 reels/ about 6~8S |
| Counting accuracy | ≥99.9% | |
| Detection Components | Resistors, Capacitors, Inductors, Crystal oscillators, LEDs, Diodes, Transistors, MOSFETs, Optocouplers, Wwitches, Terminal blocks, Multi-pin ICs, etc. | |
| Data Log | Supports automatic data saving in TXT/XLS/CSV formats | |
| Integration System | Supports integration with production process and management systems such as MES, WMS, and ERP. | |
| Print and Label | Label Print | Desktop label printer (with automatic peel) |
| Electrical control part | Siemens high-performance PLC | |
| Error-proofing Mechanism | The Reel is automatically identified by a desktop sensor. After counting, any tray of material can be picked up, and a label with information about that tray will be printed automatically. | |
| Safety | Radiation | ＜ 0.5 µSv/h |
| Safety self-locking | Intelligent electromagnetic lock protection ensures safe operation by preventing the door from being opened by radiation. | |
| X-ray Switch Warning | Multi-color LED interactive safety display | |
| Warranty | Hardware Warranty | 1 Year Warranty for Whole Machine |
| Software Warranty | Software Database is Updated for free | |
