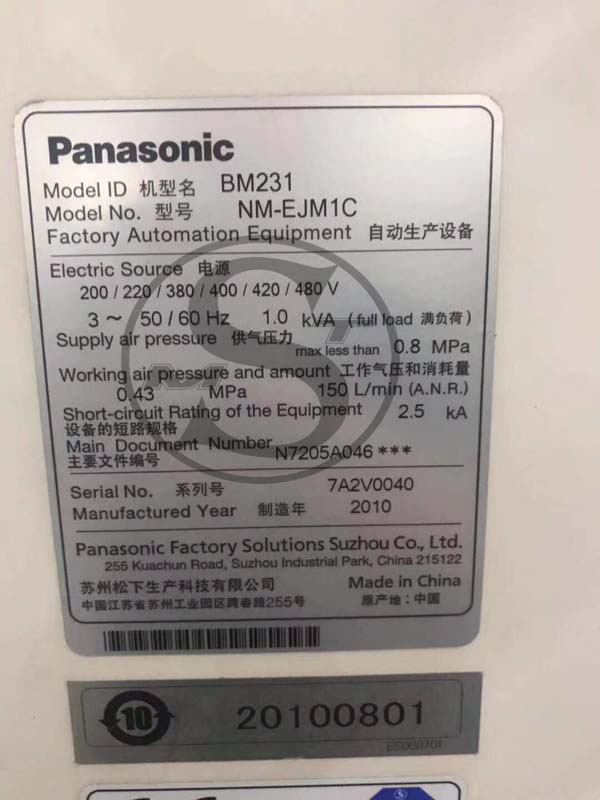

| BM231 | |
| Model No. | NM-MF13 |
| PCB Dimensions Min L*W to Max L*W |
50*50mm 510*460mm |
| Max Speed | 0.25s/chip |
| Placement Accuracy | Chip 50μm(Cpk≥1），QFP 30μm（Cpk≥1） |
| No. Of Components Input | Double Tape Feeder：120，Tray Feeder：80 |
| Components Dimensions | 0603 Chip L 150 x W 25mm x T 25mm |
| PCB Exchange Time*3 | 5.0s |
| Electric Source*4 | 3-phase AC 200V,3.3kVA |
| Pneumatic Source | 0.43MPa，150L/min(A.N.R.) |
| Dimensions |
1,950mm 2,270mm*5 1,500mm*5 |
| Mass | 2,100kg(Fixed Supply Specification) |
