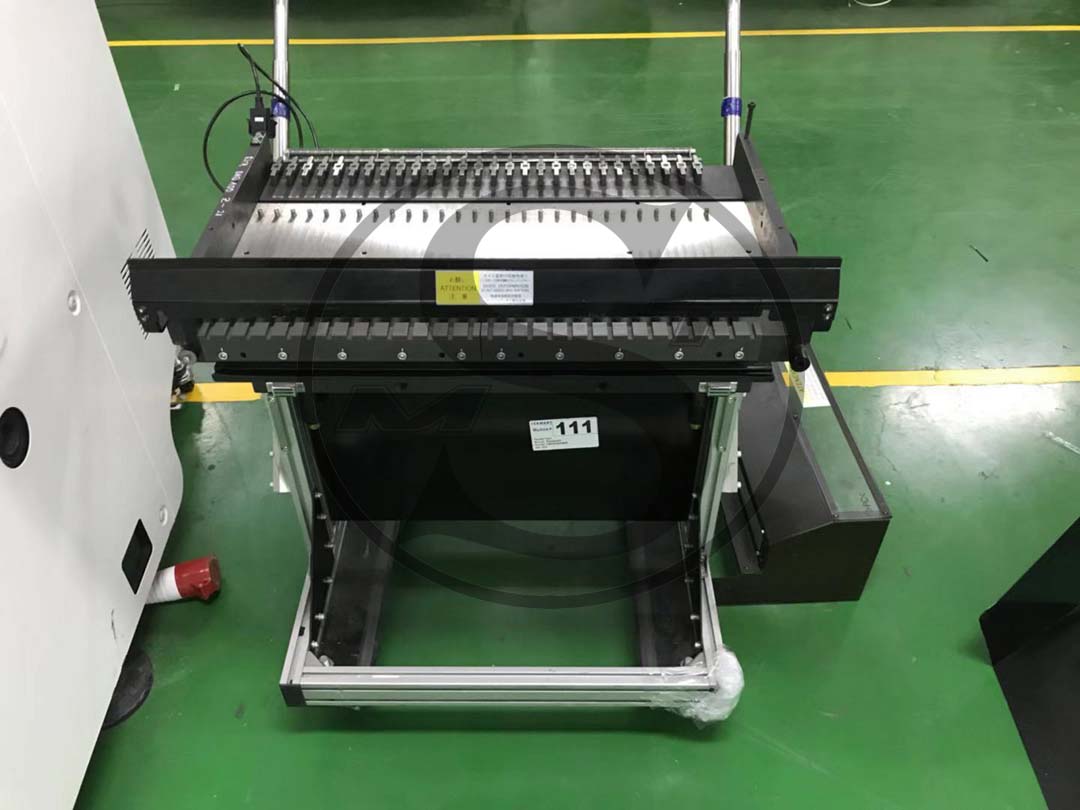

Panasonic CM602 Feeder Trolley / Cart KXFX036PA00 N610064416AA N610056962AA

Brand: Panasonic
Part No.: KXFX036PA00 N610064416AA N610056962AA
Used for: CM602...
Products Inquiry

Description

Panasonic CM602 Feeder Gang / Trolley / Cart KXFX036PA00 N610064416AA N610056962AA


    パーツリスト

   PARTS LIST		   キット品番
      Kit No.		 KXFX036PA00 ｾｸｼｮﾝNo.
   Section No.
   キット名称
    Kit Name		 一括交換台車
Feeder Cart		 16-A
ｲﾗｽﾄ
No.
Ref
No.		    品番
Part No.		       品     名
   Part Name		 備       考
Remarks		 数量
Q'ty		 R
1		 R
2		 R
3
1   N210011343AA   STOPPER   2
2   KXFB02E8A03   BASE   1
3   KXFB02E9C01   BASE   1
4   KXFB02EAA02   BASE   1
5   KXFB02EBA00   PLATE   1
6   KXFB02ECA01   PLATE   1
7   KXFB02EDA00   SHAFT   1
8   KXFB02EEA00 COLLAR   27
9   KXFB02EGA03   BAR   2
10   KXFB02EHA00   SPACER   2
11   N210092714AA GUIDE   28
12   N210092715AA GUIDE   28
13   N210075728AA COVER   1
14   KXFB02F3B02 COVER   1
15   KXFB02F4A00   BRACKET   10
16   KXFB02F5A00 GUIDE   3
17   KXFB02F6A00 COVER   2
18   N210034388AB COVER   1
19   N210022420AA COVER   1
20   N210022421AA COVER   1
21   N210022422AA   BRACKET   2
23   N210022425AA COVER   1
24   KXF03P0AA00 WASHER   T10 20
25   KXF02YTAA00   PIN MS6-25 4
26   KXF0CTQAA00   SPACER   BRU-309S 28
27   KXF0DJ4AA00 CAP   FC M3 56
28   KXF0CXHAA00   PIN    1017003-40008 4
29   KXF0CXJAA00   PIN    1017003-50010 2
30   N510016261AA   SPACER   BSF-425E 8
31   KXF0CTTAA00 WASHER WSSB13-5-5 10
33   N510016262AA   SPACER   BSF-480E 4
34   KXF0CXKAA00   PIN    1017003-60012 6
35   KXF0CTVAA00   BUSH   JBA12- 16 2
36   KXF08GBAA00   JOINT   KQLE06-00 1
38   KXF0CXLAA00   PIN    1017003-30010 112
39   KXF007TAA00 GROMMET   C-30-SG-32A 1
40   N510004894AA COLLAR   NCLB10- 16- 18.0 4
41   KXF0CUDAA00 WASHER WSSB25- 10-5 4
42   N210064292AA   BRACKET   1
44   N510030795AA COLLAR   87AZC4 2
45   N210022436AA COVER   1
46   KXF0E24RA00   PACKING   FC-779-4- 1(DA KXF0E24RA00) 1
47   KXF02ESAA00   KNOB   KRM-32-M5X10 2
48   N510018811AA   BOLT    Hexagon socket head cap screw M3X18- 10.9 A2J (Trivalent) 28
49   KXF02CRAA00   PLUG   KQP-06 1
50   N210029161AA GUIDE   1
51   N210060009AD COVER   1
52   N510018104AA   SCREW   Pan head machine screw Cross recessed M2X4 2
53   KXF0290AA00   BAND   KCA-34 1
54   N210085294AA   STOPPER   2
    パーツリスト

   PARTS LIST		   キット品番
      Kit No.		 KXFX036PA00 ｾｸｼｮﾝNo.
   Section No.
   キット名称
    Kit Name		 一括交換台車
Feeder Cart		 16-B
ｲﾗｽﾄ
No.
Ref
No.		    品番
Part No.		       品     名
   Part Name		 備       考
Remarks		 数量
Q'ty		 R
1		 R
2		 R
3
1   KXFB02ERA00 HOLDER   4
2   KXFB02ESA00 HOLDER   2
3   KXFB02EWA01   PLATE   1
4   N210011274AA   BUSH   2
5   N210009545AA   PLATE   1
6   N210011344AA   BAR   2
7   N210022427AA COVER   1
8   N210022428AA COVER   2
9   N210022429AA   PLATE   2
10   N210022430AA COVER   1
11   N210019839AA   BRACKET   2
12   KXF0CTXAA00   FRAME   SFF-364 L=849 2
13   KXF0DLSAA00   FRAME   SFF-364 L=370 TL 2
14   KXF0CTZAA00   FRAME   SFF-364 L=590 1
15   KXF0ATEAA00   BRACKET   SFJ-018 6
16   KXF0ARXAA00 CAP   SFA-005 4
17   N510004570AA CASTER   420SA-N75-B 2
18   N510004571AA CASTER   413SA-N75-B 2
19   N510005138AA CYLINDER   ACQ80X75 1
20   KXF0952AA00   SPEED-CONTROLLER   AS3201F-03-06S 2
21   N510017161AA   BOLT    Hexagon socket head cap screw M10X130- 10.9 A2J (Trivalent) 4
22   KXF0CU7AA00 COLLAR   NCLB16-25-23.0 1
23   KXF0CU8AA00 WASHER WSSB50- 16-5 2
24   N510004786AA   POST   ETKRFT-25-250- 1 2
25   KXF03HBAA00 MAGNET   SM-77S 2
26   KXF0ATGAA00 NUT   SFB-002 48
29   N510008398AA   POST   LSBWRKT- 19- 133 2
33   KXFB02F0A01 GUIDE   2
34   KXFB02F1A00   SHAFT   2
35   KXF0AJYAA00 WASHER WSSB30-8-2 2
36   KXF0DLTAA00   SPRING   (DA 0DLTA) 2
37   KXF0DLUAA00 WASHER WSSB40- 16-5 4
38   KXF0DREAA00   BOLT   CBSS8- 12 2
40   N510018798AA   BOLT    Eyebolt M16 Steel Unichrome white (Trivalent) 2
42   KXF0DY18A00 NUT   SFJ-606 4
43   N210022437AA   PLATE   2
44   N510020101AA WASHER   Thick washer for M6 12

    パーツリスト

   PARTS LIST		   キット品番
      Kit No.		 KXFX036PA00 ｾｸｼｮﾝNo.
   Section No.
   キット名称
    Kit Name		 一括交換台車
Feeder Cart		 16-C
ｲﾗｽﾄ
No.
Ref
No.		    品番
Part No.		       品     名
   Part Name		 備       考
Remarks		 数量
Q'ty		 R
1		 R
2		 R
3
1   N210074025AA   SHAFT   6
2   N210006932AA COLLAR   27
3   N210006937AA   SPACER   54
4   KXFB02EPA00 COLLAR   1
5   KXFB02EQA00   BAR   1
6   KXFB02ETB00 ARM   2
7   KXFB02EUB02 HANDLE   2
8   KXFB02EVA01 GUIDE   2
9   N210022426AA   PLATE   2
10   N210074059AA   PLATE   27
11   N210074060AA   PLATE   27
12   KXFB02FGA00   BRACKET   1
13   N210022431AA   SEPARATOR   10
14   KXF0DWLEB00   BOX   (DA KXF0DWLEB00) 1
15   KXF0CU2AA00 RUBBER-LEG   C-31-3 2
16   N510013791AA URETHANE   A20-40 2
17   KXF09DZAA00   BOLT MSB8-40 2
18   KXF0CU4AA00   SPRING WT27-30 1
19   KXF0CU5AA00 WASHER MSRB20- 1.0 28
20   KXF09SDAA00 WASHER WSSB6-4- 1 4
21   KXFB03K9A01   JOINT   2
22   KXF0DX4LA00   BOX    190564KB-2EB 1
23   N210065403AA GUIDE   1
24   N210039519AA   BRACKET   1
25   N210039520AA   SPACER   1
26   N210074026AA NUT-BLOCK   12


    パーツリスト

   PARTS LIST		   キット品番
     Kit No.		 KXFX0419A00 ｾｸｼｮﾝNo.
   Section No.
  キット名称
   Kit Name		 一括交換台車搬送ライン930mm対応
Transport Line 930 mm Support for Feeder Cart		   17
ｲﾗｽﾄ
No.
Ref
No.		   品番
Part No.		       品    名
   Part Name		 備      考
Remarks		 数量
Q'ty		 R
1		 R
2		 R
3
1 KXFB08DPA00 GUIDE   2
2 KXFB08DQA00 BRACKET   2
1 KXFB02UCA00 SPACER   2
2 KXFB02UDA00 BRACKET   2
1 KXFB02MUA00 AIR-BLOCK   1
2 KXF0DTHAA00 COUPLER   103C-M5-KK(DDA) 27
3 KXF029KAA00   JOINT   KJL06-01S 1
4 KXF057WAA00 PLUG   Plug 1/8 1
