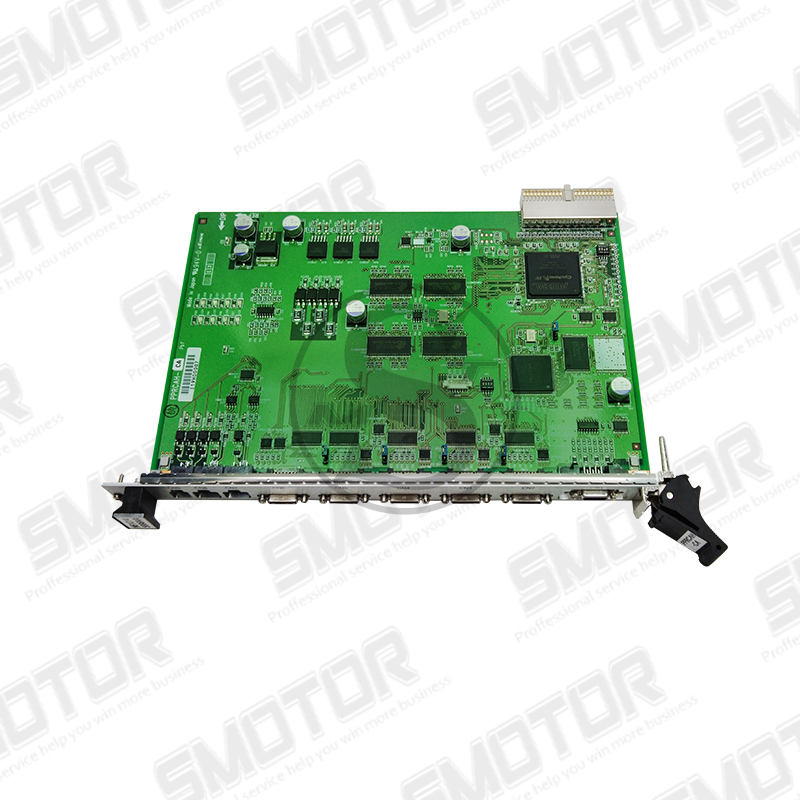

Panasonic NPM-D3 Recognition Board N610145898AA N610145896AA PPRCAH-CA
Source:未知Author:Smotor Addtime:2023-05-16 Click:
Panasonic NPM-D3 Recognition Board N610145898AA N610145896AA PPRCAH-CA
Brand:Panasonic
Part No.: N610145898AA N610145896AA
Model No.:PPRCAH-AA PPRCAH-CA
Fit For:NPM-D3 Pick and Place SMT machine
PARTS LIST
パーツリスト |
Kit No.
キット品番 |
N610073583AC |
Section No.
セクションNo. |
Kit Name
キット名称 |
CPU BOX & Wiring:NPM
CPU BOX&配線:NPM |
5 |
Ref
No.
ｲﾗｽﾄ
No. |
Part No.
品 番 |
Part Name
品 名 |
Remarks
備 考 |
Q'ty
数量 |
R
1 |
R
2 |
R
3 |
|
1 |
N610067516AB |
CPU BOX |
PBXCAB-AA |
1 |
|
S |
|
|
2 |
N210084432AA |
FILTER |
|
1 |
|
|
|
|
3 |
N210110264AA |
SPRING |
|
1 |
|
|
|
|
4 |
N510037010AA |
POWER |
PCSF-200P-X2S3 |
1 |
|
S |
|
|
5 |
N510037011AA |
PCB-COM |
NBC-7153-01 |
1 |
|
|
|
|
6 |
KXF08K7AA00 |
FAN-GUARD |
109-049E |
1 |
|
|
|
|
7 |
N510063128AA |
FAN |
109P0812H7D11 |
1 |
|
|
|
|
8 |
N610154417AA |
NC and I/O Board |
PNFCAC-CA |
1 |
|
S |
|
|
9 |
N610145896AA |
Camera I/F Board |
PPRCAH-AA |
1 |
|
S |
|
|
10 |
N610121793AA |
PCB-COM |
|
1 |
|
S |
|
|
11 |
N510042756AA |
BATTERY |
FC-BT001 |
1 |
|
|
|
|
12 |
N510156136AA |
BATTERY |
CBAT-002 |
1 |
|
S |
|
|
|
|
|
|
|
|
|
|
NPM
NPM NC and I/O Board01(Pana) PNFCAA-CA N610065549AB
NPM Camera I/F Board PPRCAD-AA N610053953AC
NPM PCB-COM NBC-JC155X-D5 N510040630AA
NPM CPU BOX PBXCAB-AA N610067516AB
NPM PCB-COM NBC-7153-01 N510037011AA
NPM FA PC kit FAパソコンキットN610080806AA
NPM EL16CC_PbF: Sensor Relay Board: LED KXFE0019A00
NPM Tray Control Board PNF0AT-AA N610059876AB
NPM PC BOARD N210108792AB
NPM Jig Station Board N610093310AA
NPM Operation Change Board PNF0A5-AA N610073212AB
NPM Ring I/O Load Board PNF0AA-DA N610063804AA
NPM ILK CONTROL BOARD PNF0AS-AA N610063104AB
NPM POWER FAILURE SUB BOARD PNF0AN-AA N610059330AA
NPM LED Lighting Control Board PPE0AA-AA N610048899AB
NPM Coaxial White LED Lighit Unit Board N610054441AA
NPM Side LED Lighit Unit Board (White/Red) N610054436AA
NPM Twelve Nozzle Head ZAxis Control Board PMC0AD-AA N610050356AB
NPM HEAD Theta-Axis Control Board PMC0AF-BA N610063475AB
NPM Two Nozzle Head Control Board PMC0AF-AA N610063474AB
NPM Feeder Cart Board(18-Row;NPM PNF0A1-AA N610067525AB
NPM BOARD MC12CA N610032084AA
NPM-D
NPM-D NPMOperation change board N610106335AA
NPM-D Ring I/O Load Board:NPM PNF0B3-AA N610113311AA
NPM-D Connector Relay Board:NPM PEC0AD-AA N610113374AA
NPM-D NC and I/O Board01(Pana) PNFCAA-CA N610065549AB
NPM-D Camera I/F Board PPRCAD-AA N610053953AC
NPM-D PCB-COM(Kernel Inside) N610099138AA
NPM-D CPU BOX PBXCAB-AA N610067516AB
NPM-D PCB-COM NBC-7153-01 N510037011AA
NPM-D POWER FAILURE SUB BOARD PNF0AN-AA N610059330AA
NPM-D Coaxial White LED Lighit Unit Board N610054441AA
NPM-D Side LED Lighit Unit Board (White/Red) N610054436AA
NPM-D 16 Nozzle Head Z-Axis Control Board PMC0AJ-AA N610097972AA
NPM-D HEAD Theta-Axis Control Board PMC0AF-BA N610063475AB
NPM-D 12 nozzle Z axis control board N610050356AB
NPM-D 12 nozzle head THE axis control board N610102223AA
NPM-D 8 nozzle Z axis control board N610065254AB
NPM-D 8 nozzle head THE axis control board N610102224AA
NPM-D Two nozzle head THE axis control board N610063474AB
NPM-D PC BOARD MC12CA N610032084AA
NPM-D EL16CC_PbF: Sensor Relay Board: LED KXFE0019A00
NPM-D TRANSFER CONTROL BOARD POP-PMC0AC-AA N610065363AA
NPM-D Transfer Control Board MC02CD N610047387AA
NPM-D Hot Swap Relay Board PNF0AL-AA N610048315AA
NPM-D Jig Station Board N610093310AA
NPM-D2
NPM-D2 CPU BOX PBXCAB-AA N610067516AB
NPM-D2 PCB-COM NBC-7153-01 N510037011AA
NPM-D2 NC and I/O Board01(Pana) PNFCAA-CA N610065549AB
NPM-D2 Camera I/F Board PPRCAH-AA N610145896AA
NPM-D2 PCB-COM(kernel pre-installed):TYPE- N610121793AA
NPM-D2 PC BOARD NPM trestle transportation control ILK PCB Quad N610113988AC
NPM-D2 NPM highly accurate beem LED control PCB N610112763AB
NPM-D2 NPM 17 ream CART PCB N610102505AA
NPM-D2 NPM tray control PCB NPM/AM100 tray control PCB N610102503AB
NPM-D2 PC BOARD N610129768AB
NPM-D2 Camera Link Switch Board PNF0AM-BA N610083130AA
NPM-D2 LED Lighting Unit:NPM_2D N610094821AB
NPM-D2 Camera Link Switch Board PNF0AM-BA N610083130AA
NPM-D2 PC BOARD N610112762AA
NPM-D2 PC BOARD N610112761AA
NPM-D2 Line camera LED control PCB PPE0AA-BA N610145867AA
NPM-D2 POWER FAILURE SUB BOARD PNF0AN-AA N610059330AA
NPM-D2 PC BOARD EL16CC_PbF: Sensor Relay Board: LED KXFE0019A00
NPM-D2 Inspection BOX: Head communication relay board N610102517AA
NPM-D2 16 Nozzle Head Z-Axis Control Board PMC0AJ-AA
NPM-D2 HEAD Theta-Axis Control Board N610102225AA
NPM-D2 12 nozzle Z axis control board N610106339AA
NPM-D2 12 nozzle head THE axis control board N610102223AA
NPM-D2 8 nozzle Z axis control board N610106340AA
NPM-D2 8 nozzle head THE axis control board N610102224AA
NPM-D2 Two nozzle head THE axis control board N610063474AB
NPM-D2 PC BOARD MC12CA N610032084AA
NPM-D3
NPM-D3 CPU BOX N610073583AC
NPM-D3 NPM Operation change board N610106335AB
NPM-D3 Ring I/O Load Board:NPM N610113311AA
NPM-D3 CPU BOX PBXCAB-AA N610067516AB
NPM-D3 Camera I/F Board PPR0AE-AA N610081331AB
NPM-D3 PCB-COM NBC-7153-01 N510037011AA
NPM-D3 NC and I/O Board PNFCAC-CA N610154417AA
NPM-D3 Camera I/F Board PPRCAH-AA N610145896AA
NPM-D3 PCB-COM N610121793AA
NPM-D3 Trestle Transportation Control ILK PCB N610161195AA
NPM-D3 POWER FAILURE SUB BOARD PNF0AN-AA N610059330AA
NPM-D3 PCB NPM highly accurate beam LED control PCB N610112763AB
NPM-D3 Coaxial White LED Lighit Unit Board N610054441AA
NPM-D3 Side LED Lighit Unit Board (White/Red) N610054436AA
NPM-D3 EL16CC_PbF: Sensor Relay Board: LED KXFE0019A00
NPM-D3 PCB BOARD KIT Inspection BOX: Head communication relay board N610102517AA
NPM-D3 12 nozzle Z axis control board N610106339AA
NPM-D3 12 nozzle head THE axis control board N610102223AA
NPM-D3 8 nozzle Z axis control board N610106340AA
NPM-D3 8 nozzle head THE axis control board N610102224AA
NPM-D3 Two nozzle head THE axis control board N610063474AB
NPM-D3 Camera Link Switch Board PNF0AM-BA N610083130AA
NPM-D3 PCB N610129768AB
NPM-D3 Lighte wight 16 nozzle head Z-axis THETA-axis control board N610164162AA
NPM-D3 PCB MC12CA N610032084AA
NPM-D3 TRANSFER CONTROL BOARD POP-PMC0AC-AA N610065363AA
NPM-D3 Transfer Control Board MC02CD N610047387AA
NPM-D3 Hot Swap Relay Board PNF0AL-AA N610048315AA
NPM-D3 BOARD N210108792AC
NPM-D3 Jig Station Board N610093310AA
NPM-D3 BOARD N610113618AA
NPM-D3 SS communication relay board: Support station N610102501AA
NPM-D3 Board N610114660AA
NPM-TT
NPM-TT CPU BOX PBXCAB-AA N610067516AB
NPM-TT PCB-COM NBC-7153-01 N510037011AA
NPM-TT NC and I/O Control Board (MEL) PNFCAA-EA N610119965AA
NPM-TT Camera I/F Board PPRCAD-AA N610053953AC
NPM-TT PCB-COM(Kemel Inside) N610121793AA
NPM-TT PCB Trestle Transportation Control ILK PCB:NPM-TT N610135249AA
NPM-TT POWER FAILURE SUB BOARD PNF0AN-AA N610059330AA
NPM-TT Coaxial White LED Lighit Unit Board N610054441AA
NPM-TT Side LED Lighit Unit Board (White/Red) N610054436AA
NPM-TT EL16CC_PbF: Sensor Relay Board: LED KXFE0019A00
NPM-TT Feeder Cart Board(13-Slot) NPM 13 ream CART PCB N610118835AA
NPM-TT 8 nozzle Z axis control board N610106340AA
NPM-TT 8 nozzle head THE axis control board N610102224AA
NPM-TT 3 nozzle head THE axis control board N610121762AA
NPM-TT BOARD MC12CA N610032084AA
NPM-TT NPMOperation change board N610106335AA
NPM-TT Ring I/O Load Board:NPM PNF0B3-AA N610113311AA
NPM-TT CPU BOARDNBC-JC155X-D5 N610106944AA
NPM-TT ILK BOARD N610135236
NPM-TT TRAY CONTORL BOARD PNF0AT N610102503AA
NPM-TT PCB BOARD PNF0B4-AA N510018282AA
NPM-TT TRANSFER CONTROL BOARD POP-PMC0AC-AA N610065363AA
NPM-TT Transfer Control Board MC02CD N610047387AA
NPM-TT Hot Swap Relay Board PNF0AL-AA N610048315AA
NPM-TT PC BOARD N210108792AC
NPM-TT Jig Station Board N610093310AA
NPM-TT BOARD N610088868AA
NPM-TT2
NPM-TT2 CPU BOX PBXCAB-AA N610067516AB
NPM-TT2 NPM Operation change board N610106335AB
NPM-TT2 Ring I/O Load Board:NPM PNF0B3-AA N610113311AA
NPM-TT2 Camera I/F Board PPRCAH-AA N610145896AA
NPM-TT2 PCB-COM NBC-7153-01 N510037011AA
NPM-TT2 NC and I/O Control Board PNFCAC-EA N610154418AA
NPM-TT2 PCB-COM (kernel pre-installed) MTKB000085AA
NPM-TT2 Trestle Transportation Control ILK PCB:N N610135249AA
NPM-TT2 POWER FAILURE SUB BOARD PNF0AN-AA N610059330AA
NPM-TT2 Coaxial White LED Lighit Unit Board PLU0AJ-BA N610054441AA
NPM-TT2 Side LED Lighit Unit Board (White/Red) PLU0AH-BA N610054436AA
NPM-TT2 EL16CC_PbF: Sensor Relay Board: LED KXFE0019A00
NPM-TT2 Feeder Cart Board(13-Slot) NPM 13 ream CART PCB N610118835AA
NPM-TT2 Light weight 8 nozzle Z and Theta axis control board MTKB000052AA
NPM-TT2 Z2 THETA2-Axis HEAD Control Board PMC0A9-AA MTKB000228AA
NPM-TT2 Z2 THETA2-Axis HEAD Control Board PMC0A9-BA MTKB000229AA
NPM-TT2 BOARD MC12CA
NPM-TT2 TRANSFER CONTROL BOARD POP-PMC0AC-AA N610065363AA
NPM-TT2 Transfer Control Board MC02CD N610047387AA
NPM-TT2 Hot Swap Relay Board PNF0AL-AA N610048315AA
NPM-TT2 BOARD N210108792AC
NPM-TT2 Jig Station Board N610093310AA
NPM-TT2 SIDE LED LIGHIT UNIT MAIN BOARD ( PLU0A6-AA MTKB000130AC
NPM-W2 SIDE LED LIGHIT UNIT SUB BOARD (W PLU0A7-AA MTKB000131AA
NPM-TT2 Character recog lightning control board MTKA011722AA
NPM-W
NPM-W NPMOperation change board N610106335AA
NPM-W Ring I/O Load Board:NPM PNF0B3-AA
NPM-W CPU BOX PBXCAB-AA N610067516AB
NPM-W PCB-COM NBC-7153-01 N510037011AA
NPM-W NC and I/O Control Board (MEL) PNFCAA-EA N610119965AA
NPM-W Camera I/F Board PPRCAD-AA N610053953AC
NPM-W PCB-COM(Kemel Inside) N610121793AA
NPM-W Coaxial White LED Lighit Unit Board N610054441AA
NPM-W Side LED Lighit Unit Board (White/Red) N610054436AA
NPM-W BOARD SET N610116351AA
NPM-W EL16CC_PbF: Sensor Relay Board: LED KXFE0019A00
NPM-W 12 nozzle Z axis control board N610106339AA
NPM-W 12 nozzle head THE axis control board N610102223AA
NPM-W 8 nozzle Z axis control board N610106340AA
NPM-W 8 nozzle head THE axis control board N610102224AA
NPM-W 16 Nozzle Head Z-Axis Control Board PMC0AJ-AA N610106341AA
NPM-W HEAD Theta-Axis Control Board PMC0AF-BA N610102225AA
NPM-W 3 nozzle head THE axis control board N610121762AA
NPM-W BOARD MC12CA N610032084AA
NPM-W TRANSFER CONTROL BOARD POP-PMC0AC-AA N610065363AA
NPM-W Transfer Control Board MC02CD N610047387AA
NPM-W Hot Swap Relay Board PNF0AL-AA N610048315AA
NPM-W BOARD N210108792AC
NPM-W Jig Station Board N610093310AA
NPM-W BOARD N610088868AA
NPM-W PC BOARD SS communication relay board: Support station N610102501AA
NPM-W Camera I/F Board PPR0AE-AA N610081331AB
NPM-W PC BOARD KIT Inspection BOX: Head communication relay board N610102517AA
NPM-W BOARD N610114660AA
NPM-W2
NPM-W2 Operation change board NPM/AM100 Operation change board N610106335AB
NPM-W2 Ring I/O Load Board Ring I/O Load Board PNF0B3-AA N610113311AA
NPM-W2 CPU BOX PBXCAB-AA MTKA002491AA
NPM-W2 PCB-COM NBC-7153-01 N510037011AA
NPM-W2 Camera I/F Board PPRCAH-AA N610145896AA
NPM-W2 NC and I/O Control Board PNFCAC-EA N610154418AA
NPM-W2 PCB-COM (kernel pre-installed) MTKB000085AA
NPM-W2 POWER FAILURE SUB BOARD PNF0AN-AA N610059330AA
NPM-W2 PCB Trestle Transportation Control ILK PCB NPM-W2 N610169311AA
NPM-W2 Coaxial White LED Lighit Unit Board PLU0AJ-BA N610054441AA
NPM-W2 Side LED Lighit Unit Board (White/Red) PLU0AH-BA N610054436AA
NPM-W2 BOARD SET N610116351AA
NPM-W2 Feeder Cart Board(13-Slot) NPM 13 ream CART PCB N610118835AA
NPM-W2 NPM 17-Slot CART PCB N610102505AA
NPM-W2 EL16CC_PbF: Sensor Relay Board: LED KXFE0019A00
NPM-W2 12 nozzle Z axis control board N610106339AA
NPM-W2 12 nozzle head THE axis control board N610102223AA
NPM-W2 8 nozzle Z axis control board 8 nozzle Z axis control board
NPM-W2 8 nozzle head THE axis control board N610102224AA
NPM-W2 Lighte wight 16 nozzle head Z-axis THETA-axis control board N610164162AA
NPM-W2 3 nozzle head THE axis control board N610121762AA
NPM-W2 BOARD MC12CA N610032084AA
NPM-W2 TRANSFER CONTROL BOARD POP-PMC0AC-AA N610065363AA
NPM-W2 Transfer Control Board MC02CD N610047387AA
NPM-W2 Hot Swap Relay Board PNF0AL-AA N610048315AA
#panasonic #SMT #NPM #D3 #PCB #board
