ｵﾌﾟｼｮﾝ名 Option Name

ユニットページ UNIT Page

ｾｸｼｮﾝページ Section Page

ｷｯﾄ品番 Kit  No.

Base

U1

S1

N610109603AA

S15

N610116434AA

S17

N610111413AA

S19

N610112727AA

S21

N610073583AA

S23

N610110223AA

S25

N610109232AB

S27

N610112728AA

U3

S29

N610109604AA

S37

N610109605AA

S41

N610111414AA

S43

N610111415AA

S45

N610111691AA

U5

S47

N610041187AA

S49

N610052706AB

S51

N610074583AA

U7

S55

N610111621AA

S65

N610111622AA

S67

N610111624AA

S69

N610111625AA

S71

N610111626AA

S73

N610117080AA

S75

N610112733AA

S77

N610110513AA

キットリスト KIT LIST

製品品番       Model No.

NM-EJM1D

1

製品名称    Model Name

NPM-D:プロダクション モジュラー NPM-D:Production Modular

番号 No.

品番 Part No.

キット名

Kit Name

数量    Q'ty

ﾗﾝｸ Rank

頁 Page

1

N610109603AA

本体部:NPM-D

Main Body:NPM-D

1

S1

2

N610116434AA

アジャストボルト部(M42)

ADJUST BOLT(M42)

4

S15

3

N610111413AA

銘板・警告ラベル(本体部):NPM-D

Label(Main Body):NPM-D

1

S17

4

N610112727AA

本体部制御:NPM-D

Main Body (H):NPM-D

1

S19

5

N610073583AA

CPU BOX&配線:NPM

CPU BOX & Wiring:NPM

1

S21

6

N610110223AA

POWER UNIT 1:NPM-D

POWER UNIT 1:NPM-D

1

S23

7

N610109232AB

POWER UNIT 2:NPM-D

POWER UNIT 2:NPM-D

1

S25

8

N610112728AA

操作部制御:NPM-D

Operation Parts (H):NPM-D

1

S27

キットリスト KIT LIST

製品品番       Model No.

NM-EJM1D

2

製品名称    Model Name

NPM-D:プロダクション モジュラー NPM-D:Production Modular

番号 No.

品番 Part No.

キット名

Kit Name

数量    Q'ty

ﾗﾝｸ Rank

頁 Page

9

N610109604AA

X軸:NPM-D

X-Axis:NPM-D

1

S29

10

N610109605AA

Y軸:NPM-D

Y-Axis:NPM-D

1

S37

11

N610111414AA

銘板・警告ラベル(X軸):NPM-D

Label(X-Axis):NPM-D

1

S41

12

N610111415AA

銘板・警告ラベル(Y軸):NPM-D

Label(Y-Axis):NPM-D

1

S43

13

N610111691AA

XY軸制御:NPM-D

XY-Axis (H):NPM-D

1

S45

キットレイアウト    KIT LAYOUT

製品品番       Model No.

NM-EJM1D

3

製品名称    Model Name

NPM-D:プロダクション モジュラー NPM-D:Production Modular

キットリスト KIT LIST

製品品番       Model No.

NM-EJM1D

3

製品名称    Model Name

NPM-D:プロダクション モジュラー NPM-D:Production Modular

番号 No.

品番 Part No.

キット名

Kit Name

数量    Q'ty

ﾗﾝｸ Rank

頁 Page

14

N610041187AA

ヘッドカメラ:NPM

Head Camera:NPM

1

S47

15

N610052706AB

ヘッドカメラLED照明:NPM

LED Lighting Unit:NPM

1

S49

16

N610074583AA

ヘッドオプション駆動ユニット:NPM

Head Option Driving Unit:NPM

1

S51

キットリスト KIT LIST

製品品番       Model No.

NM-EJM1D

4

製品名称    Model Name

NPM-D:プロダクション モジュラー NPM-D:Production Modular

番号 No.

品番 Part No.

キット名

Kit Name

数量    Q'ty

ﾗﾝｸ Rank

頁 Page

17

N610111621AA

全体カバー:NPM-D

Whole Cover:NPM-D

1

S55

18

N610111622AA

銘板・警告ラベル(全体カバー):NPM-D

Label(Whole Cover):NPM-D

1

S65

19

N610111624AA

フィーダテーブルカバー(前側):NPM-D

Feeder Table Cover(Front Side):NPM-D

1

S67

20

N610111625AA

フィーダテーブルカバー(後側):NPM-D

Feeder Table Cover(Rear Side):NPM-D

1

S69

21

N610111626AA

銘板・警告ラベル(フィーダテーブルカバー):NPM-D

Label(Feeder Table Cover):NPM-D

1

S71

22

N610117080AA

安全カバー(カメラ前):NPM-D

COVER(F/R):NPM-D

1

S73

23

N610112733AA

全体カバー制御:NPM-D

Whole Cover (H):NPM-D

1

S75

24

N610110513AA

付属品(共通):NPM-D

Attachment:NPM-D

1

S77

パーツリスト    PARTS LIST						キット品番 Kit No.							N610109603AA																				ｾｸｼｮﾝNo. Section No.
						キット名称 Kit Name							本体部:NPM-D Main Body:NPM-D																				1-A
ｲﾗｽﾄ No. Ref No.	品番 Part No.					品     名 Part Name							備       考 Remarks																			数量 Q'ty		R 1	R 2	R 3
1	N210133591AF					FRAME																										1
2	N210097217AA					FILTER																										1		A
3	N210117338AA					COLLAR																										2
4	N210133593AC					BRACKET																										2
6	N210141924AB					BRACKET																										1
7	N210141925AA					BRACKET																										1
8	N210091214AC					COVER																										2
9	N210134748AB					COVER																										1
10	N210134749AB					COVER																										1
11	N210091217AA					PLATE																										1
12	N210133598AB					BRACKET																										1
13	N210106698AA					COVER																										3
14	N210109531AA					BRACKET																										1
15	N210134279AA					COVER																										1
16	N210134280AD					BRACKET																										1
17	N210134281AD					BRACKET																										1
18	N210141926AB					BRACKET																										1
19	N510020618AA					PIN							MMS6- 15																			52
20	N510018305AA					SCREW							Cross recessed Truss head machine screw M6X10-4.8 A2S (Trivalent)																			20
21	KXF0E0V6A00					CLIP							NK- 12N																			1
22	N510018767AA					WASHER							Toothed lock washer 6 External toothed Steel Unichrome white (Trivalent)																			8
23	N510031739AA					GROMMET							C-30-SG-36A-UL																			5
24	N510042548AA					SENSOR							E3ZS-T81A- 1																			1			S
25	N510017557AA					BOLT							SSS 003 Hexagon socket button head screw M6X16- 10.9 A2J (Trivalent)																			2
26	N510017741AA					BOLT							Hexagon head bolt Best class M5X12-6g 4T A2J (Trivalent)																			2
27	N510031738AA					GROMMET							C-30-SG-42A-UL																			2
28	N210145916AA					COVER																										2
29	N210141923AA					COVER																										1
30	N210145917AA					BRACKET																										1
31	N510018282AA					SCREW							Cross recessed Truss head machine screw M4X8-4.8 A2J (Trivalent)																			8

パーツリスト    PARTS LIST						キット品番 Kit No.							N610109603AA																				ｾｸｼｮﾝNo. Section No.
						キット名称 Kit Name							本体部:NPM-D Main Body:NPM-D																				1-B
ｲﾗｽﾄ No. Ref No.	品番 Part No.					品     名 Part Name							備       考 Remarks																			数量 Q'ty		R 1	R 2	R 3
1	N210134277AB					BRACKET																										1
2	N210134278AC					BRACKET																										1
3	N210133595AA					COVER																										1
4	N210134498AD					BRACKET																										1
5	N210145918AA					COVER																										1
6	N210134499AD					BRACKET																										1
7	N210139659AB					COVER																										1
8	N210133596AB					BRACKET																										1
9	N210145919AA					COVER																										1
10	N210141850AA					BRACKET																										1
11	N210133597AB					DUCT																										1
12	KXFB02RRA00					BRACKET																										2
13	N210109276AA					BRACKET																										1
14	N210105401AC					BRACKET																										2
15	N210105540AA					BRACKET																										1
16	N210092125AC					COVER																										1
17	N210115662AB					COVER																										1
18	N210118400AA					COVER																										1
19	N210116497AB					BRACKET																										1
20	N210145920AA					COVER																										1
22	N510037922AA					SPACER							ASF-560E																			2
23	N510018277AA					SCREW							Cross recessed Truss head machine screw M4X5-4.8 A2J (Trivalent)																			6
24	N238109139E					COVER							109- 139E																			2
25	KXF0DUBAA00					JOINT							KK3S-08E																			1
26	N510035652AA					SPACER							ASF-510E																			1
27	N510017528AA					BOLT							SSS 003 Hexagon socket button head screw M4X4- 10.9 A2J (Trivalent)																			69
28	N510017534AA					BOLT							SSS 003 Hexagon socket button head screw M4X6- 10.9 A2J (Trivalent)																			11
29	N510041110AA					FAN							109L0624H4J03																			1
30	N510041111AA					FAN							109L0624H4J04																			1
31	N510020115AA					SPACER							ASF-490E																			2
32	KXFP6J9XA00					CABLE-SUPPORT							KR7G5																			4
33	N510009576AA					SPACER							3382330-40020																			1
34	N510017536AA					BOLT							SSS 003 Hexagon socket button head screw M4X8- 10.9 A2J (Trivalent)																			2
35	N510049783AA					DRAIN							9021																			1
36	N510018251AA					SCREW							Cross recessed Truss head machine screw M3X5-4.8 A2J (Trivalent)																			2
37	N510005403AA					GROMMET							C-30-SG-46A-UL																			1
38	N510017372AA					BOLT							Hexagon socket head cap screw M4X5- 10.9 A2J (Trivalent)																			5
39	N510017069AA					SPACER							ASF-580E																			1

パーツリスト    PARTS LIST

キット品番 Kit No.

N610109603AA

ｾｸｼｮﾝNo. Section No.

キット名称 Kit Name

本体部:NPM-D Main Body:NPM-D

1-C

ｲﾗｽﾄ No. Ref No.

品番 Part No.

品     名 Part Name

備       考 Remarks

数量 Q'ty

R 1

R 2

R 3

1

N210133594AA

COVER

1

2

N210133600AA

COVER

1

3

N210134562AC

PLATE

1

4

N510031811AA

SPACER

CB-502E

2

5

N510055155AA

VALVE

4GA110-M5-A2NPS-FL432736-3-ST

2

6

N510017067AA

SPACER

ASF-460E

11

7

N510037917AA

SPACER

ASF-595E

2

8

N510028373AA

SPACER

ASF-307E

9

パーツリスト    PARTS LIST

キット品番 Kit No.

N610109603AA

ｾｸｼｮﾝNo. Section No.

キット名称 Kit Name

本体部:NPM-D Main Body:NPM-D

1-D

ｲﾗｽﾄ No. Ref No.

品番 Part No.

品     名 Part Name

備       考 Remarks

数量 Q'ty

R 1

R 2

R 3

1

N210091196AB

SHEET

2

2

KXFB03KAA01

TARGET

4

3

N210097125AD

SHAFT

4

4

N210106801AB

BRACKET

2

5

N210103036AC

BOX

2

6

N210091429AB

COVER

2

7

XXE6D25FT

SCREW

Hexagon socket set screw Cup point M6X25-45H SOB

4

8

N510043537AA

POST

LSBT-6- 190

4

9

XXF12C40FT

SCREW

Hexagon socket set screw Flat point M12X40-45H SOB

4

10

N510000299AA

BOLT

SSS 003 Hexagon socket button head screw M3X10- 12.9 SOB

2

11

N510049696AA

SENSOR

EE-SX914-C2J-R 0.5M

2

12

N510017187AA

BOLT

Hexagon socket head cap screw M12X20- 10.9 A2J (Trivalent)

4

パーツリスト    PARTS LIST

キット品番 Kit No.

N610109603AA

ｾｸｼｮﾝNo. Section No.

キット名称 Kit Name

本体部:NPM-D Main Body:NPM-D

1-E

ｲﾗｽﾄ No. Ref No.

品番 Part No.

品     名 Part Name

備       考 Remarks

数量 Q'ty

R 1

R 2

R 3

1

N210117345AA

WASHER

12

2

N610113698AA

PUMP KIT

1

3

KXF0E4LPA00

JOINT

KQ2ZT08-02S

1

4

KXF0A0EAA00

JOINT

KQ2R06-08

1

5

KXF0DZKRA00

JOINT

KQ2P-08

2

6

N510017103AA

SPACER

CB-504E

4

7

KXF07S8AA00

FAN-GUARD

109-619E

1

8

KXFP007AA00

FAN-GUARD

109-620

1

9

N510041221AA

FAN

109-642- 12

1

S

10

N510041655AA

BELT

35303430040

1

パーツリスト    PARTS LIST

キット品番 Kit No.

N610109603AA

ｾｸｼｮﾝNo. Section No.

キット名称 Kit Name

本体部:NPM-D Main Body:NPM-D

1-F

ｲﾗｽﾄ No. Ref No.

品番 Part No.

品     名 Part Name

備       考 Remarks

数量 Q'ty

R 1

R 2

R 3

1

N510051935AA

MANIFOLD

VV3QZ12-02-X60V

1

2

N510037363AA

REGULATOR

IR2000-02-R-DIL00073

1

3

N510037364AA

REGULATOR

AR20-02H- 1Y-X2276

1

4

N510037365AA

REGULATOR

AR20-02H-Y-X2299

1

5

N510042482AA

SWITCH

ZSE30-C6L-25-MA

1

6

N510040253AA

GAUGE

GZ46-K-01-C

1

7

N510037366AA

GAUGE

G46-2-01-C

1

8

N510016399AA

GAUGE

G46- 10-01-C

1

9

KXF0E0FGA00

JOINT

KQ2LF06-01

3

10

N510043826AA

REGULATOR

AC30X-03D-X2512

1

11

N510010256AA

SWITCH

ISE30-C4H-25-MB

1

12

N510002541AA

HOSE

OUA8X12-5M-03B

1

13

KXF0A0DAA00

JOINT

KQ2X06-08

5

14

KXF09ZBAA00

JOINT

KQ2P-06

1

パーツリスト    PARTS LIST						キット品番 Kit No.							N610109603AA																				ｾｸｼｮﾝNo. Section No.
						キット名称 Kit Name							本体部:NPM-D Main Body:NPM-D																				1-G
ｲﾗｽﾄ No. Ref No.	品番 Part No.					品     名 Part Name							備       考 Remarks																			数量 Q'ty		R 1	R 2	R 3
1	N210133592AC					FRAME																										1
2	N210139652AA					PLATE																										2
3	N210105679AC					PLATE																										2
4	N210105682AA					PLATE																										4
5	N210141847AA					BRACKET																										1
6	N210133601AA					COVER																										1
7	N210133602AA					PLATE																										1
8	N210121795AA					COVER																										2
9	N210121799AB					BRACKET																										1
10	N210138009AB					BRACKET																										1
11	N210138010AB					BRACKET																										1
12	N610121415AB					STAND( F )																										1
13	N610121416AB					STAND( R )																										1
14	N510030912AA					SPACER							CB-314E																			4
15	N510045365AA					COUPLER							MA-MS-SC3-06(CS33419-4)																			2
16	N510042549AA					SENSOR							E3ZS-T81A-2																			1			S
17	N510017038AA					SPACER							3382330-90160																			8
18	N510032414AA					BOLT							MMSB10-85																			8
19	N510042313AA					SPRING							SSWU17-65																			8
20	N510000312AA					BOLT							SSS 003 Hexagon socket button head screw M3X30- 12.9 SOB																			4
21	N510029521AA					SPACER							CF-325E																			4
22	N510026881AA					BOLT							SRBS-M3X12																			4
23	N510020620AA					PIN							MMS6-25																			2
24	N510054867AA					LINEAR-WAY							SHS25LV2QZUUS+1804L(02422846G000)																			1
25	N510006098AA					PIN							1017003-40010																			3
26	N510037923AA					SPACER							ASF-545E																			2
27	N510057297AA					NUT							Hexagon nut with flange M8-6H-4T A2J (Trivalent)																			8

パーツリスト    PARTS LIST

キット品番 Kit No.

N610116434AA

ｾｸｼｮﾝNo. Section No.

キット名称 Kit Name

アジャストボルト部(M42) ADJUST BOLT(M42)

2

ｲﾗｽﾄ No. Ref No.

品番 Part No.

品     名 Part Name

備       考 Remarks

数量 Q'ty

R 1

R 2

R 3

1

N210138889AA

COLLAR

1

2

N210139776AA

WASHER

1

3

N610116436AA

BOLT

1

4

N610117094AB

BASE

1

5

N510056779AA

NUT

Hexagon nut Type3 Middle class M42-6H-4T A2J (Trivalent)

1

6

N210143260AB

PAD

1

パーツリスト    PARTS LIST

キット品番 Kit No.

N610111413AA

ｾｸｼｮﾝNo. Section No.

キット名称 Kit Name

銘板・警告ラベル(本体部):NPM-D Label(Main Body):NPM-D

3

ｲﾗｽﾄ No. Ref No.

品番 Part No.

品     名 Part Name

備       考 Remarks

数量 Q'ty

R 1

R 2

R 3

1

N510026094AA

LABEL

NP-STILL.P-N510026094

1

S

2

KXF0E05UA00

LABEL

PC010201(DA KXF0E05UA00)

6

S

3

KXF0E05WA00

LABEL

PC010301(Drawing available KXF0E05WA00)

1

S

4

N510011517AA

LABEL

FN0030M1

1

S

5

N986PN0035E1

LABEL

PN0035E1

1

S

パーツリスト    PARTS LIST

キット品番 Kit No.

N610112727AA

ｾｸｼｮﾝNo. Section No.

キット名称 Kit Name

本体部制御:NPM-D Main Body (H):NPM-D

4

ｲﾗｽﾄ No. Ref No.

品番 Part No.

品     名 Part Name

備       考 Remarks

数量 Q'ty

R 1

R 2

R 3

1

N610106335AA

NPMOperation change board

NPMOperation change board

1

S

2

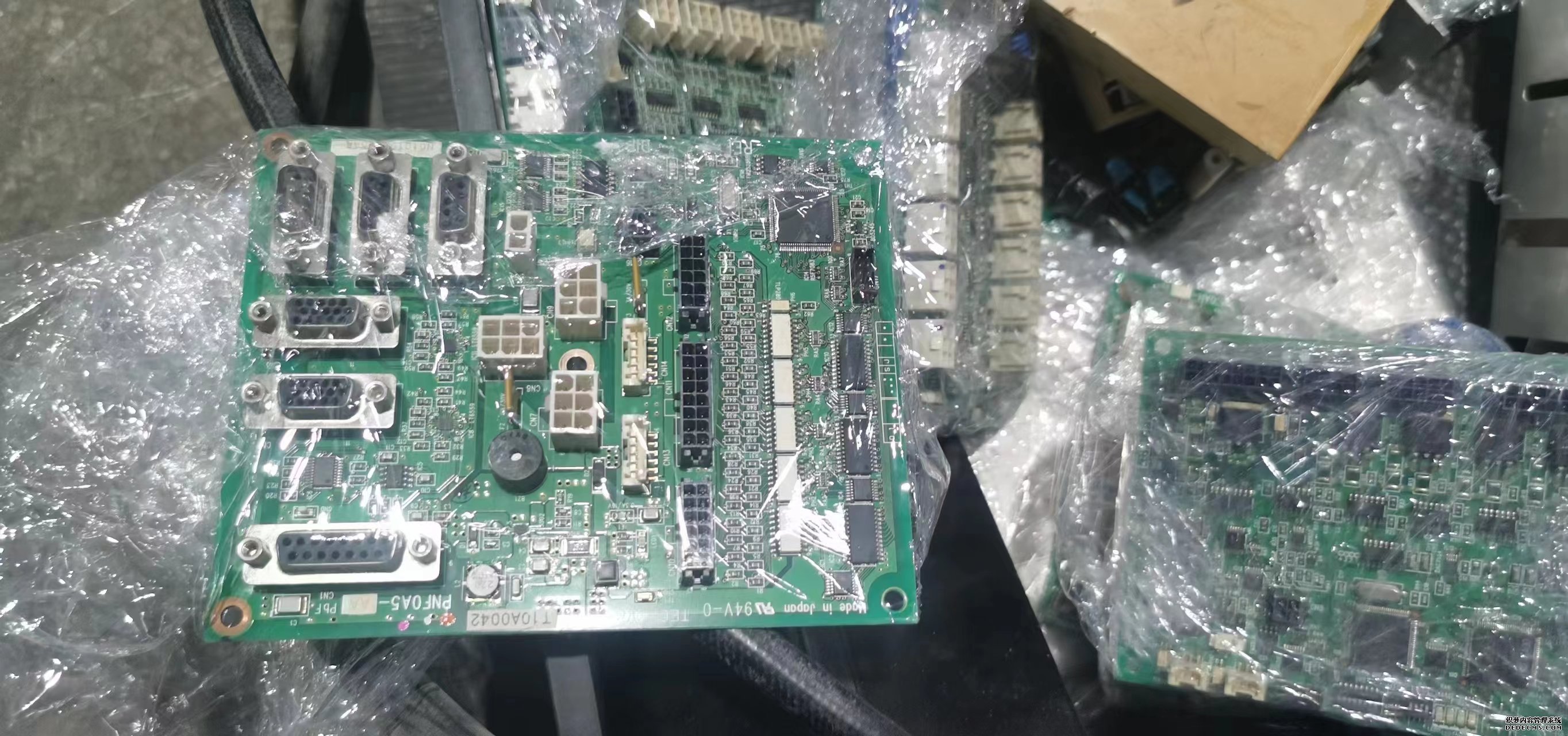

N610113311AA

Ring I/O Load Board:NPM

PNF0B3-AA

1

S

3

N610113374AA

Connector Relay Board:NPM

PEC0AD-AA

1

S

4

N610072768AC

Serge protector

RAV-801BXZ-4(250)-TMEE2-5-TMEE1.25-4-250(2a/4a/6aF101)

1

S

5

N510031643AB

TERMINAL-BLOCK

TB-X101(F000035)

1

S

6

N510032349AA

BREAKER

NF50-SR 3P 15A

1

S

7

N510022963AA

SWITCH-PARTS

V05SRUF

1

8

N510035139AA

TERMINAL-COVER

TCS-05SRU3

1

S

9

N510013513AA

TERMINAL

N510013513AA

1

10

N510050636AA

TRANSFORMER

TE3N-4.8K-GR/TD- 16672-A

1

S

11

N510036794AA

NOISE-FILTER

TAH-20-683

1

S

12

MCDDT3520N09

MOTOR-DRIVER

MCDDT3520N09

2

S

13

MEDDT7364N09

MOTOR-DRIVER

MEDDT7364N09

2

S

14

N510045220AB

RESISTOR

RH450F 20QJ2A225

2

S

15

N510044949AA

CARD-READER

YD-8V06-G8H30210

1

S

16

N510045262AA

GASKET

65TSV7-7(KD3) L=100

2

17

N510045263AA

GASKET

65TSV7-7(KD3) L=132

4

18

N510045264AA

GASKET

65TSV7-7(KD3) L=172

1

19

N510046909AA

GASKET

65TSV7-7(KD3) L=540

2

パーツリスト    PARTS LIST

キット品番 Kit No.

N610073583AA

ｾｸｼｮﾝNo. Section No.

キット名称 Kit Name

CPU BOX&配線:NPM CPU BOX & Wiring:NPM

5

ｲﾗｽﾄ No. Ref No.

品番 Part No.

品     名 Part Name

備       考 Remarks

数量 Q'ty

R 1

R 2

R 3

1

N610065549AB

NC and I/O  Board01(Pana)

PNFCAA-CA

1

S

2

N610053953AC

Camera I/F Board

PPRCAD-AA

1

S

3

N610099138AA

PCB-COM(Kernel Inside)

1

S

4

N610067516AB

CPU BOX

PBXCAB-AA

1

S

5

N610078579AA

FAN

1

6

N510037010AA

POWER

PCSF-200P-X2S3

1

S

7

KXF08K7AA00

FAN-GUARD

109-049E

1

8

N210110264AA

SPRING

1

9

N210084432AA

FILTER

1

10

N510037011AA

PCB-COM

NBC-7153-01

1

11

N510042756AA

BATTERY

FC-BT001

1

12

N510021652AA

BATTERY

CBAT-001

1

S

パーツリスト    PARTS LIST

キット品番 Kit No.

N610110223AA

ｾｸｼｮﾝNo. Section No.

キット名称 Kit Name

POWER UNIT 1:NPM-D POWER UNIT 1:NPM-D

6

ｲﾗｽﾄ No. Ref No.

品番 Part No.

品     名 Part Name

備       考 Remarks

数量 Q'ty

R 1

R 2

R 3

1

N610113988AA

PCB

NPM trestle transportation control ILK PCB Quad

1

S

2

N610059330AA

POWER FAILURE SUB BOARD

PNF0AN-AA

1

S

3

N510031622AB

TERMINAL-BLOCK

TB-X111(F000038)

1

S

4

N510054942AA

TERMINAL-BLOCK

TB-X113(F000098)

1

S

5

KXFP6JTDA00

MAGNET-CONTACTOR

SD-Q19 DC24V 1a1b

1

S

6

N510032346AA

MAGNET-SWITCH

MSOD-Q11CX(KP) 1.3A 200V DC24V

1

S

7

KXFP6GG0A00

SURGE-KILLER

UN-SA33

1

S

8

N510041592AA

CIRCUIT-PROTECTOR

CP31FI/10(CCC)

5

S

9

N510042705AA

CIRCUIT-PROTECTOR

CP31FI/5(CCC)

1

S

10

N510042706AA

CIRCUIT-PROTECTOR

CP31FI/15(CCC)

1

S

11

N510041642AA

CIRCUIT-PROTECTOR-COVER

CP-T4(UL-94V0)

14

S

12

N510012235AA

RELAY

G9SC-400-CNP4E-PF

1

S

13

N510025759AB

RELAY

G9SC-PF

1

S

14

KXFP6GE3A00

POWER-SUPPLY

ADA600F-24

1

S

15

N510038308AA

POWER-SUPPLY

PBA15F-24-N

1

S

16

N322ATC1-657

SWITCH-PARTS

ATC180041

1

パーツリスト    PARTS LIST

キット品番 Kit No.

N610109232AB

ｾｸｼｮﾝNo. Section No.

キット名称 Kit Name

POWER UNIT 2:NPM-D POWER UNIT 2:NPM-D

7

ｲﾗｽﾄ No. Ref No.

品番 Part No.

品     名 Part Name

備       考 Remarks

数量 Q'ty

R 1

R 2

R 3

1

N610110210AA

PCB

NPM trestle transportation control ILK PCB#2

1

S

2

KXFP6GFZA00

MAGNET-CONTACTOR

SD-Q12 DC24V 1a1b

2

S

3

N510042706AA

CIRCUIT-PROTECTOR

CP31FI/15(CCC)

1

S

4

N510041642AA

CIRCUIT-PROTECTOR-COVER

CP-T4(UL-94V0)

2

S

5

N510025698AA

RELAY

G9SC-400-CNP4E

2

S

6

K6B4EHA00001

RELAY

G7SA-2A2B

4

S

7

KXFP6JGFA00

RELAY-SOCKET

P7SA- 10F-ND

4

8

N510055402AA

POWER

LEP240F-24-SN

1

S

9

N510013513AA

TERMINAL

N510013513AA

1

パーツリスト    PARTS LIST

キット品番 Kit No.

N610112728AA

ｾｸｼｮﾝNo. Section No.

キット名称 Kit Name

操作部制御:NPM-D Operation Parts (H):NPM-D

8

ｲﾗｽﾄ No. Ref No.

品番 Part No.

品     名 Part Name

備       考 Remarks

数量 Q'ty

R 1

R 2

R 3

1

N510055076AA

MONITOR

R08RPF

2

S

2

N510055102AA

SWITCH

LW6W-33-TK2504

2

3

N510055103AA

SWITCH

LW6S-2LC2V-BC-TK2504

2

S

4

N510055100AA

SWITCH

LW6L-M1C13VW-BC-TK2504-B

2

5

N510044818AA

PLUG

LW9Z-BS6

2

6

N510041345AA

SWITCH

XW1E-BV403VR-BC-TK2377

2

S

7

N510047312AA

LAMP

YW1P-TK2495

2

8

N510057148AA

BACK-LIGHT

Y84LHS06

2

S

パーツリスト    PARTS LIST						キット品番 Kit No.							N610109604AA																				ｾｸｼｮﾝNo. Section No.
						キット名称 Kit Name							X軸:NPM-D X-Axis:NPM-D																				9-A
ｲﾗｽﾄ No. Ref No.	品番 Part No.					品     名 Part Name							備       考 Remarks																			数量 Q'ty		R 1	R 2	R 3
1	N210133019AC					PLATE																										2
2	N210097292AB					BLOCK																										2
3	N210135162AB					BLOCK																										2
4	N210133020AC					SHAFT																										1
5	N210134101AB					PLATE																										2
6	N210134121AA					BRACKET																										2
7	N210133022AD					BRACKET																										2
8	N210103043AB					BRACKET																										4
9	N210134103AC					COVER																										2
10	N210084790AB					BRACKET																										2
11	N210078344AB					BRACKET																										2
12	N210134652AA					BRACKET																										4
13	N210103203AB					BRACKET																										2
14	N210103205AC					COVER																										2
15	N210134656AB					BRACKET																										2
16	N210130116AA					PLATE																										2
17	N210137787AB					GUIDE																										1
18	N210137788AB					BRACKET																										1
19	N610111667AC					X-BEAM(F)																										1
20	N610110951AB					X-PLATE(F)																										1
21	N510020608AA					PIN							MMS5- 15																			12
22	N510017555AA					BOLT							SSS 003 Hexagon socket button head screw M6X12- 10.9 A2J (Trivalent)																			6
23	N510018278AA					SCREW							Cross recessed Truss head machine screw M4X5-4.8 A2S (Trivalent)																			8
24	N510026166AA					SPACER							CF-314E																			4
25	N510045363AA					COUPLER							MA-MS-SC4-06X08(CS33418-4)																			2
26	N560AMT6- 130					GREASE-NIPPLE							A-MT6X1-Type(M6X1)																			6
27	N510020598AA					PIN							MMS4- 15																			4
28	N510036999AA					SPACER							ASF-2605E																			8
29	N510020609AA					PIN							MMS5-20																			4
30	N510029513AA					SPACER							ASF-410E																			4
31	N510002760AA					BOLT							SRBS-M3X8																			8
32	N510000423AA					BOLT							SRBS-M4X8																			4
33	N510039711AA					BOLT							CCBS4-6																			8
34	N510026714AA					HANDLE							UNFA- 100-BF																			2
35	KXFP6J9XA00					CABLE-SUPPORT							KR7G5																			4
36	N510056821AA					BOLT							Extra low head bolt M6X20L(SCM435 Trivalent chromeite)																			2
37	KXF029NAA00					JOINT							KJS04-M5																			4
38	N510017533AA					BOLT							SSS 003 Hexagon socket button head screw M4X5- 10.9 A2J (Trivalent)																			4
39	N510017516AA					BOLT							SSS 003 Hexagon socket button head screw M4X10- 10.9 A2J (Trivalent)																			8
40	N510053249AA					SENSOR							EE-SX911-C2J-R 0.5M																			1
41	N510000327AA					BOLT							SSS 003 Hexagon socket button head screw M3X8- 12.9 SOB																			2
42	N510055110AA					BOLT							Hexagon head bolt Best class M12X25-6g 4T A2J (Trivalent) no mark																			1

パーツリスト    PARTS LIST

キット品番 Kit No.

N610109604AA

ｾｸｼｮﾝNo. Section No.

キット名称 Kit Name

X軸:NPM-D X-Axis:NPM-D

9-B

ｲﾗｽﾄ No. Ref No.

品番 Part No.

品     名 Part Name

備       考 Remarks

数量 Q'ty

R 1

R 2

R 3

1

N210145659AA

BLOCK

4

2

N210093674AB

PLATE

2

3

N210109406AA

PIECE

8

4

N210134643AA

PAN

2

5

N210134648AC

PLATE

2

6

N210134649AB

COVER

2

7

N210134655AB

BRACKET

4

8

N610110948AB

PLATE

2

9

N510056709AA

LINEAR-WAY

LRXSC20C2R594E103

4

10

N510054904AA

LINEAR-SCALE

ST773A-440PF3

2

11

N510055028AA

MOTOR

DS3045C1B1AA5B6

2

S

12

N510053955AA

MOTOR

DS045M288B04B

4

S

13

N986MMS410

PIN

MMS4- 10

4

14

N510029509AA

SPACER

ASF-418E

4

15

N510020589AA

PIN

MMS3-8

8

16

N510036670AA

BOLT

CCBS4- 10

2

17

KXF0CXHAA00

PIN

1017003-40008

4

18

N510045097AA

BOLT

Hexagon head bolt Best class M6X16-6g 10T A2J (Trivalent) (MEC process:

4

21

N510018819AA

BOLT

Hexagon socket head cap screw M6X18- 10.9 A2J (Trivalent)

40

22

N510023522AA

BOLT

LH0305 Trivalent chromeite

8

23

N510020146AA

SPACER

ASF-435E

6

パーツリスト    PARTS LIST						キット品番 Kit No.							N610109604AA																				ｾｸｼｮﾝNo. Section No.
						キット名称 Kit Name							X軸:NPM-D X-Axis:NPM-D																				9-C
ｲﾗｽﾄ No. Ref No.	品番 Part No.					品     名 Part Name							備       考 Remarks																			数量 Q'ty		R 1	R 2	R 3
1	N210109236AA					STOPPER																										8
2	N210130097AB					PLATE																										2
3	N210133963AA					PLATE																										2
4	N210130100AB					HOUSING																										4
5	N210118272AA					WASHER																										4
6	N210134644AB					SHAFT																										1
7	N210077946AA					STOPPER																										1
8	N210137789AB					GUIDE																										1
9	N210137790AB					BRACKET																										1
10	N210134661AA					DOG																										1
11	N610110947AA					BRACKET																										2
12	N610110952AB					BRACKET(F)																										1
13	N610111668AC					X-BEAM( R )																										1
14	N610110954AB					X-PLATE( R )																										1
15	N610110955AB					BRACKET( R )																										1
16	N510044825AA					SPACER							3382330-40075																			8
17	N510047200AA					SPRING							SSWB12-20																			8
18	N510017457AA					BOLT							Hexagon socket head cap screw M6X8- 10.9 A2J (Trivalent)																			4
19	N510055040AA					SPRING							SSWM18-20																			4
20	N510031255AA					WASHER							TT-0818-05																			4
21	N510055041AA					COLLAR							87NCLBH4-8-21.0																			4
22	N510055042AA					COLLAR							87NCLBH5- 16-3.5																			4
23	XXF12C45FT					SCREW							Hexagon socket set screw Flat point M12X45-45H SOB																			1
24	N510027223AA					WASHER							Round finish plain washer (JIS B 1256:1978) 12 10H A2J (Trivalent)																			1
25	N510046390AA					NUT							U-nut M12 SK5 Type-2 S45C Trivalent chromate(white)																			1

パーツリスト    PARTS LIST

キット品番 Kit No.

N610109604AA

ｾｸｼｮﾝNo. Section No.

キット名称 Kit Name

X軸:NPM-D X-Axis:NPM-D

9-D

ｲﾗｽﾄ No. Ref No.

品番 Part No.

品     名 Part Name

備       考     Remarks

数量 Q'ty

R 1

R 2

R 3

1

N610112730AA

XY-Axis Front Side Wiring:NPM-

1

2

N610112731AA

XY-Axis Rear Side Wiring:NPM-

1

パーツリスト    PARTS LIST						キット品番 Kit No.							N610109605AA																				ｾｸｼｮﾝNo. Section No.
						キット名称 Kit Name							Y軸:NPM-D Y-Axis:NPM-D																				10-A
ｲﾗｽﾄ No. Ref No.	品番 Part No.					品     名 Part Name							備       考 Remarks																			数量 Q'ty		R 1	R 2	R 3
1	N210130128AC					PLATE																										2
2	N210077946AA					STOPPER																										4
3	N210097302AA					POST																										6
4	N210141785AA					POST																										4
5	N210133007AA					COVER																										6
6	N210109439AA					PIECE																										8
7	N210137246AA					SHEET																										2
8	N210130130AB					BRACKET																										2
9	N210105536AA					BRACKET																										2
10	N210136907AA					BRACKET																										4
11	N210136906AA					PLATE																										2
12	N210136905AB					PLATE																										2
13	N610110930AB					Y-BEAM																										1
14	N510055993AA					LINEAR-WAY							SHS30LV4QZUUC1S+2280LH(00042206C000)																			1
15	N510054905AA					LINEAR-SCALE							ST773A- 1900PF																			1
16	N510055030AA					MOTOR							DS045M448B01																			10			S
17	N510018282AA					SCREW							Cross recessed Truss head machine screw M4X8-4.8 A2J (Trivalent)																			24
18	N510027223AA					WASHER							Round finish plain washer (JIS B 1256:1978) 12 10H A2J (Trivalent)																			4
19	N510056624AA					SCREW							Hexagon socket set screw Flat point M12X60-45H A2J (Trivalent)																			4
20	N431KQ2L04M6					JOINT							KQ2L04-M6																			4
21	XXE6D6FT					SCREW							Hexagon socket set screw Cup point M6X6-45H SOB																			8
22	N510045098AA					BOLT							Hexagon socket head cap screw M8X25- 10.9 A2J (Trivalent)  (MEC process																			8
23	N510029211AA					SPRING-PIN							1017003-60016																			4
24	N510017189AA					BOLT							Hexagon socket head cap screw M12X30- 10.9 A2J (Trivalent)																			10
25	N510017190AA					BOLT							Hexagon socket head cap screw M12X35- 10.9 A2J (Trivalent)																			7
26	N510006098AA					PIN							1017003-40010																			3
27	N510017627AA					BOLT							Hexagon socket Flat head bolt M4X6- 10.9 A2J (Trivalent)																			4
28	N510000315AA					BOLT							SSS 003 Hexagon socket button head screw M3X4- 12.9 SOB																			8

パーツリスト    PARTS LIST

キット品番 Kit No.

N610109605AA

ｾｸｼｮﾝNo. Section No.

キット名称 Kit Name

Y軸:NPM-D Y-Axis:NPM-D

10-B

ｲﾗｽﾄ No. Ref No.

品番 Part No.

品     名 Part Name

備       考 Remarks

数量 Q'ty

R 1

R 2

R 3

1

N210133006AB

SHEET

4

2

N210136891AB

PLATE

2

3

N210133013AC

BRACKET

1

4

N210134413AA

PLATE

2

5

N210136889AC

BRACKET

1

6

N210136890AC

BRACKET

1

7

N210135245AA

PLATE

1

8

N210089385AA

BRACKET

1

9

KXFB0323A00

BRACKET

2

10

N510055029AA

MOTOR

DD4045C4A1AA40G

2

S

11

KXF077MAA00

FAN-GUARD

109-019E

1

S

12

KXF0DZ81A00

JOINT

KQ2L06-00

4

13

KXF0E1M0A00

JOINT

KQ2L08-00

4

14

N510029512AA

SPACER

ASF-415E

4

15

N610074419AA

FAN

1

S

16

N610112730AA

XY-Axis Front Side Wiring:NPM-

1

17

N610112731AA

XY-Axis Rear Side Wiring:NPM-

1

パーツリスト    PARTS LIST

キット品番 Kit No.

N610111691AA

ｾｸｼｮﾝNo. Section No.

キット名称 Kit Name

XY軸制御:NPM-D XY-Axis (H):NPM-D

13

ｲﾗｽﾄ No. Ref No.

品番 Part No.

品     名 Part Name

備       考 Remarks

数量 Q'ty

R 1

R 2

R 3

1

N610112763AA

PCB

2

S

2

J0KG00000014

NOISE-FILTER

ZCAT3035- 1330

6

S

3

KXFP6GNSA00

SHIELD

FGC-8-M4

2

4

N510044950AA

NOISE-FILTER

E04SR150718

2

S

パーツリスト    PARTS LIST

キット品番 Kit No.

N610041187AA

ｾｸｼｮﾝNo. Section No.

キット名称 Kit Name

ヘッドカメラ:NPM Head Camera:NPM

14

ｲﾗｽﾄ No. Ref No.

品番 Part No.

品     名 Part Name

備       考 Remarks

数量 Q'ty

R 1

R 2

R 3

1

N210067363AA

BRACKET

1

2

N510027781AA

LENS

OKP-46X

1

3

N510029003AA

CAMERA

CSCX30BC3- 10

1

パーツリスト    PARTS LIST

キット品番 Kit No.

N610052706AB

ｾｸｼｮﾝNo. Section No.

キット名称 Kit Name

ヘッドカメラLED照明:NPM LED Lighting Unit:NPM

15

ｲﾗｽﾄ No. Ref No.

品番 Part No.

品     名 Part Name

備       考 Remarks

数量 Q'ty

R 1

R 2

R 3

1

N610054441AA

Coaxial White LED Lighit Unit Board

1

S

2

N610054436AA

Side LED Lighit Unit Board (White/Red)

1

S

3

N210081493AB

PLATE

1

4

N210074890AC

PLATE

1

5

N210083580AC

COVER

1

6

N510037359AA

SPACER

ARU-2607S

2

7

N510028677AA

SPACER

ASB-2506E

4

8

N510037361AA

SCREW

Cross recessed Pan head machine screw M2.6X4-4.8 A2J (Trivalent)

6

9

N510017245AA

BOLT

Hexagon socket head cap screw M2.5X5- 10.9 A2J (Trivalent)

4

10

N510018226AA

SCREW

Cross recessed Truss head machine screw M2.5X5-4.8 A2J (Trivalent)

4

パーツリスト    PARTS LIST						キット品番 Kit No.							N610074583AA																				ｾｸｼｮﾝNo. Section No.
						キット名称 Kit Name							ヘッドオプション駆動ユニット:NPM Head Option Driving Unit:NPM																				16-A
ｲﾗｽﾄ No. Ref No.	品番 Part No.					品     名 Part Name							備       考 Remarks																			数量 Q'ty		R 1	R 2	R 3
1	N210106401AC					BASE																										1
2	N210106414AC					PLATE																										1
3	N210095851AA					SPRING																										3
5	N210117370AA					BRACKET																										1
6	N210117373AA					LEVER																										1
8	N210117372AB					LEVER																										1
9	N210112919AA					PLATE																										1
10	N210092263AA					GUIDE																										1
11	N210091007AB					COVER																										2
12	N510038173AA					POST							87LSFB17- 159																			3
14	KXF0C8ZAA00					BEARING																										4
15	N210117349AA					WASHER																										2
16	N510039637AA					SHAFT							LSW6-34-M3-N3-SC13																			1
19	N510020785AA					BOLT							MMSB5.5- 10																			1
20	N210117341AA					WASHER																										2
23	N510018472AA					WASHER							Iron round plain washer3X10X1.0(chromeite) A2J (Trivalent)																			6
24	KXF09WYAA00					SPACER							CU-320																			3
25	N510026205AA					BOLT							CCBSS4-8																			2
26	N510020608AA					PIN							MMS5- 15																			2
27	N510020609AA					PIN							MMS5-20																			2
28	N510008162AA					SPACER							ASF-314E																			1
29	N210117348AA					WASHER																										2
31	N210113092AA					WASHER																										1
32	N210112913AA					BLOCK																										1
33	N210113075AA					BUSH																										1
34	N210114360AA					COVER																										1
35	N210112914AC					LEVER																										1
36	N510033512AA					SPRING							6688																			1
37	N9865556					SPRING							5556																			1
38	N210117368AA					BLOCK																										1
39	N210117371AA					LEVER																										1
40	N510006098AA					PIN							1017003-40010																			1
41	N210119429AA					COVER																										1
42	N510017612AA					BOLT							Hexagon socket Flat head bolt M3X6- 10.9 A2J (Trivalent)																			2
43	N510049697AA					SENSOR							EE-SX914-C2J-R 0.3M																			3

#Panasonic #SMT #NPM #spare #parts #driver #boards #sensor #motor #shaft #powersupply
